7-1600 Next Gen Logic Converter Unit

7-1600 Datasheet

7-1600 Next Gen Logic Converter Unit

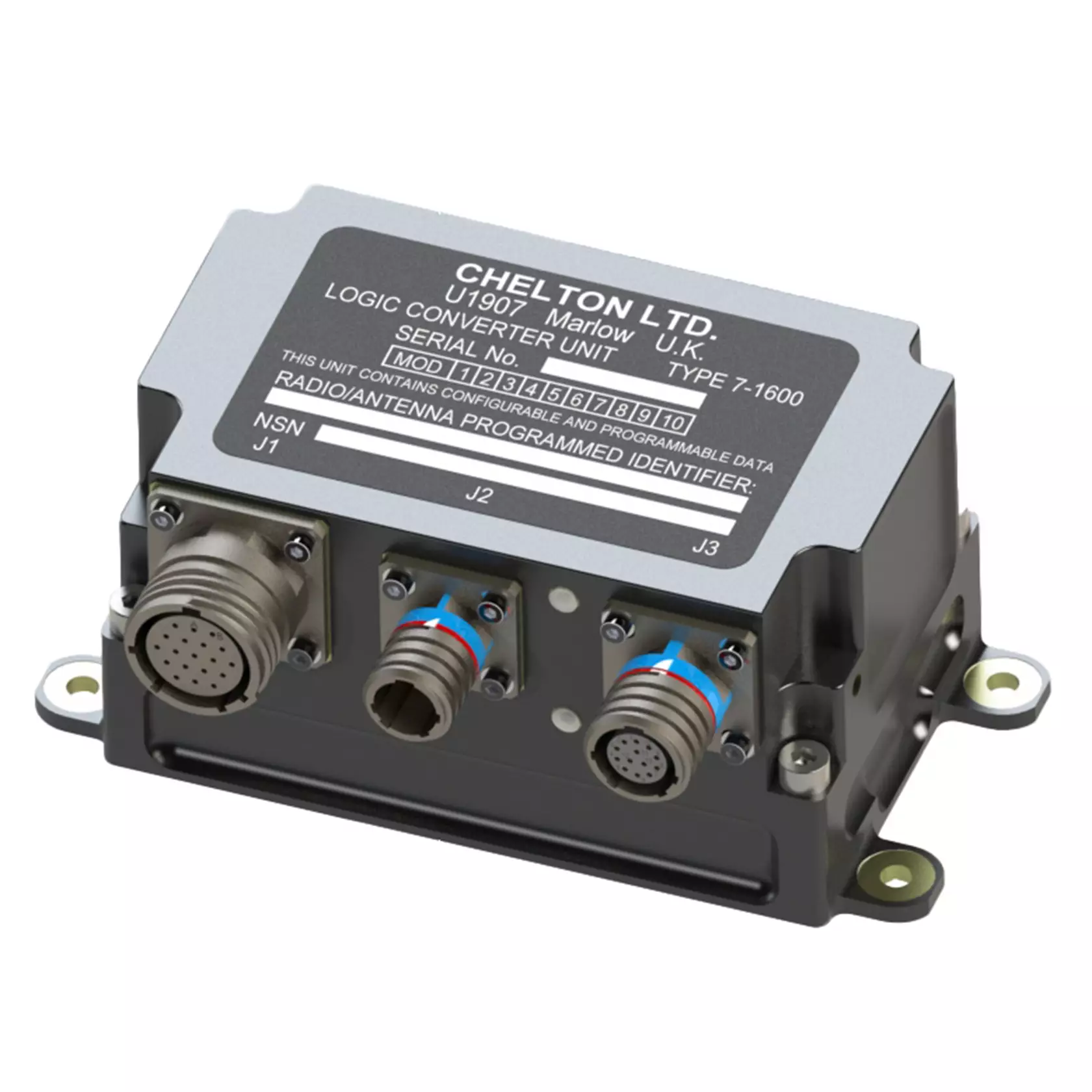

Type 7-1600 is a high performance Logic Converter Unit (LCU) designed to work in conjunction with Chelton’s range of tuneable airborne antennas. Compatible with • ARC-210 (Gen 3 to Gen 6) • ARC-231 • ARC-232 • ARC-201D • ARC-186 • ARC-182 • ARC-222 • R&S 6000 • CNR 9000 • Thales TRA 6XXX • Canyon RT5000 & RT7000 • MXF48X and MXF45X • SRT651 fast hop • SRT700 • SRT-800

  • ✔ ETSO compliant*
  • ✔ Built-In Test Diagnostic Facility
Click to enlarge

Specification

16 to 32 Volts dc DC Power Input
22 to 29 Volts dc Normal Working Voltage
16 to 32 Volts dc Emergency Working Voltage
Reverse polarity and transient protection Protection
Protection in accordance with DO-160G Power Interrupts
Radio dependent Serial Control Interface
High Level: Antenna segment, PIN diode reverse biased: +150 V ± 20 V** Low Level: Antenna segment, PIN diode forward biased: -180 mA ± 25 mA constant current source Antenna Drive Interface
J1 : D38999/20FD19PN J2 : D38999/20FA98PN J3 : D38999/20FB35SN Connector
159.7 x 72.7 x 67.7 Full Dimensions LxWxH mm
0.8 Mass kg
75000 Altitude ft
54 Continuous Operating Temperature Min - C
71 Continuous Operating Temperature Max C
See datasheet Vibration
7-1600 Datasheet
