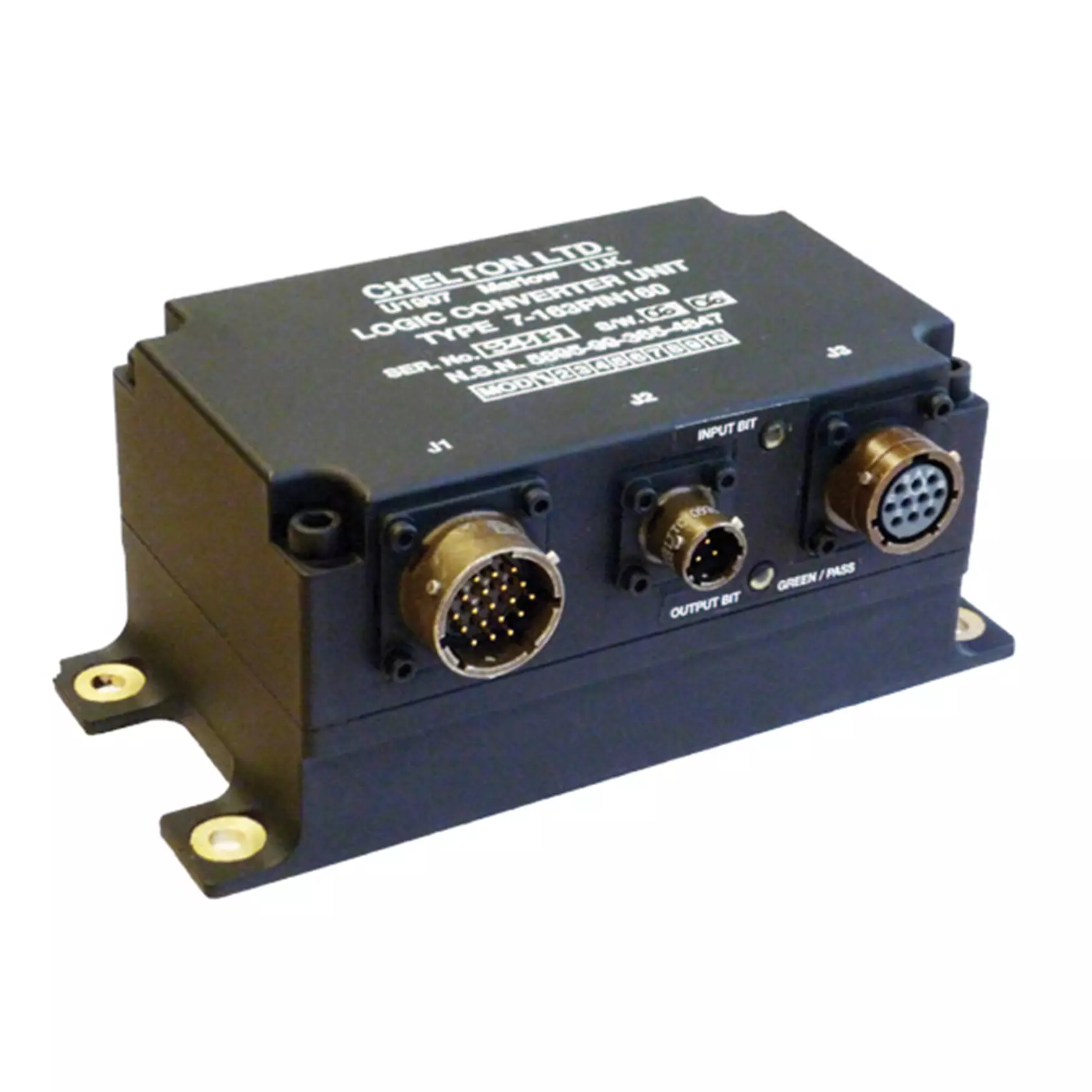

7-163PIN160 LCU
7-163PIN160 LCU
In conjunction with Chelton’s range of tuneable antennas, the 7-163PIN160 Logic Converter Unit (LCU) takes frequency information from the radio and matches the performance of the antenna to that frequency.
- ✔ For broadband, frequency hopping V/UHF secure communications
- ✔ Extensive built in diagnostic facilities (BIT)
- ✔ Internal filter plates to maximise EMC performance
- ✔ Available in high temperature variant 7-163PIN160HT
Specification
16 V to 32 V
DC Power Input Interface
Radio dependent:
Serial Control Interface
High Level - Antenna segment, PIN diode reverse biased: +100 V ± 25 V
Low Level - Antenna segment, PIN diode forward biased: -180 mA ± 25 mA constant current source
Antenna Drive Interface
Type MS3112E 14-19P
Type MS3112E 8-33P
Type MS3112E 12-10S
Connectors
67.7 x 159.7 x 77.8
Full Dimensions LxWxH mm
1
Mass kg
25000
Altitude ft
40
Continuous Operating Temperature Min - C
71
Continuous Operating Temperature Max C
See datasheet
Vibration
