7-163PIN161 LCU
7-163PIN161 LCU

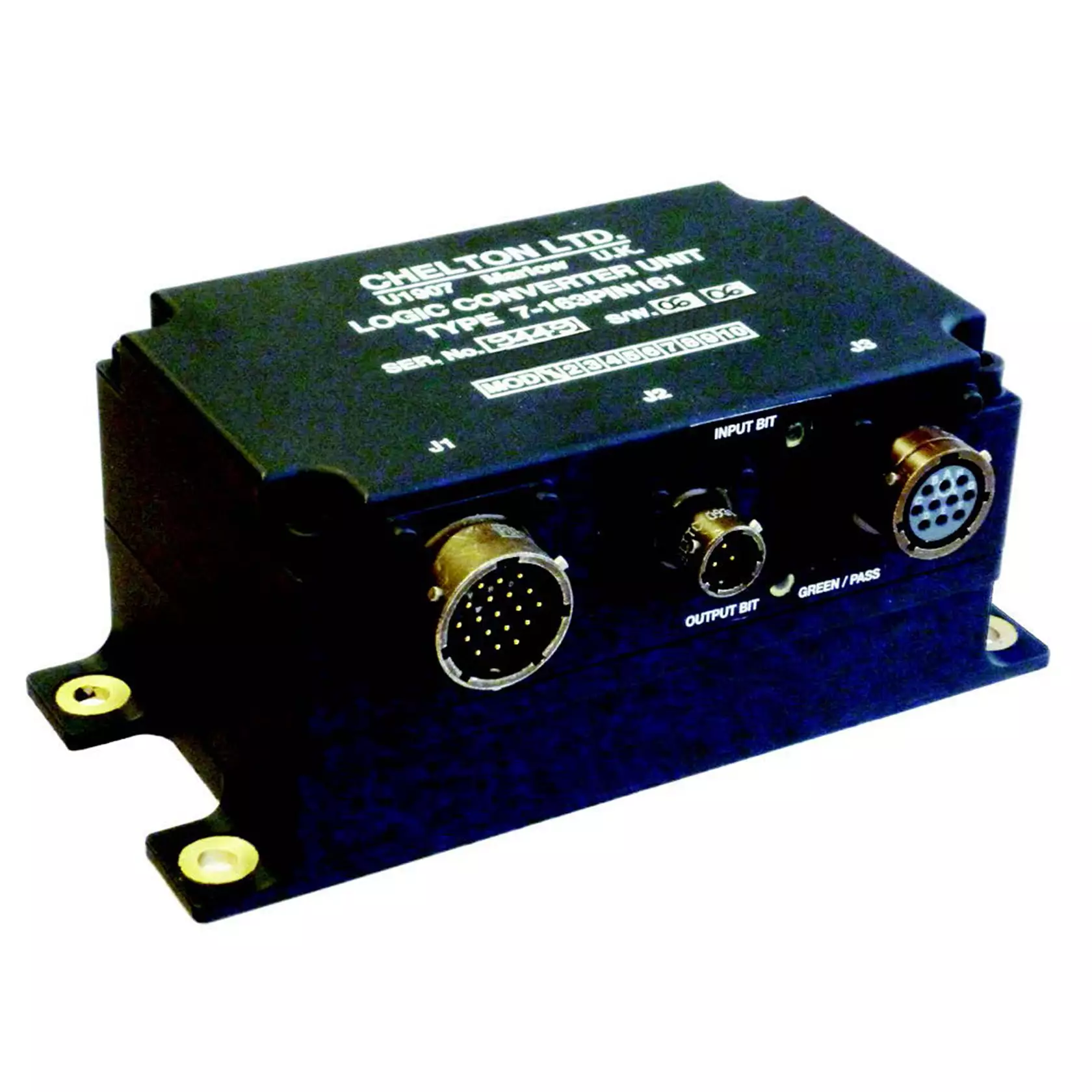

In conjunction with Chelton’s range of tunable antennas, the 7-163PIN161 Logic Converter Unit (LCU) takes frequency information from the radio and optimises the performance of the antenna to that frequency
- ✔ For broadband, frequency hopping V/UHF secure communications
- ✔ Extensive built in diagnostic facilities (BIT)
- ✔ Internal filter plates to maximise EMC performance
Specification
16 V to 32 V
DC Power Input Interface
control data be transferred as differential (0/+5 V signals), or single ended (0/+5 V)
Serial Control Interface
High Level - Antenna segment, PIN diode reverse biased: +160 V +40 V/-30 V
Low Level - Antenna segment, PIN diode forward biased: -180 mA ± 25 mA constant
Antenna Drive Interface
67.7 x 159.7 x 77.8
Full Dimensions LxWxH mm
1
Mass kg
70000
Altitude ft
54
Continuous Operating Temperature Min - C
71
Continuous Operating Temperature Max C
See datasheet
Vibration
