935 Series Tactical DF Antenna

935 Series Datasheet

935 Series Tactical DF Antenna

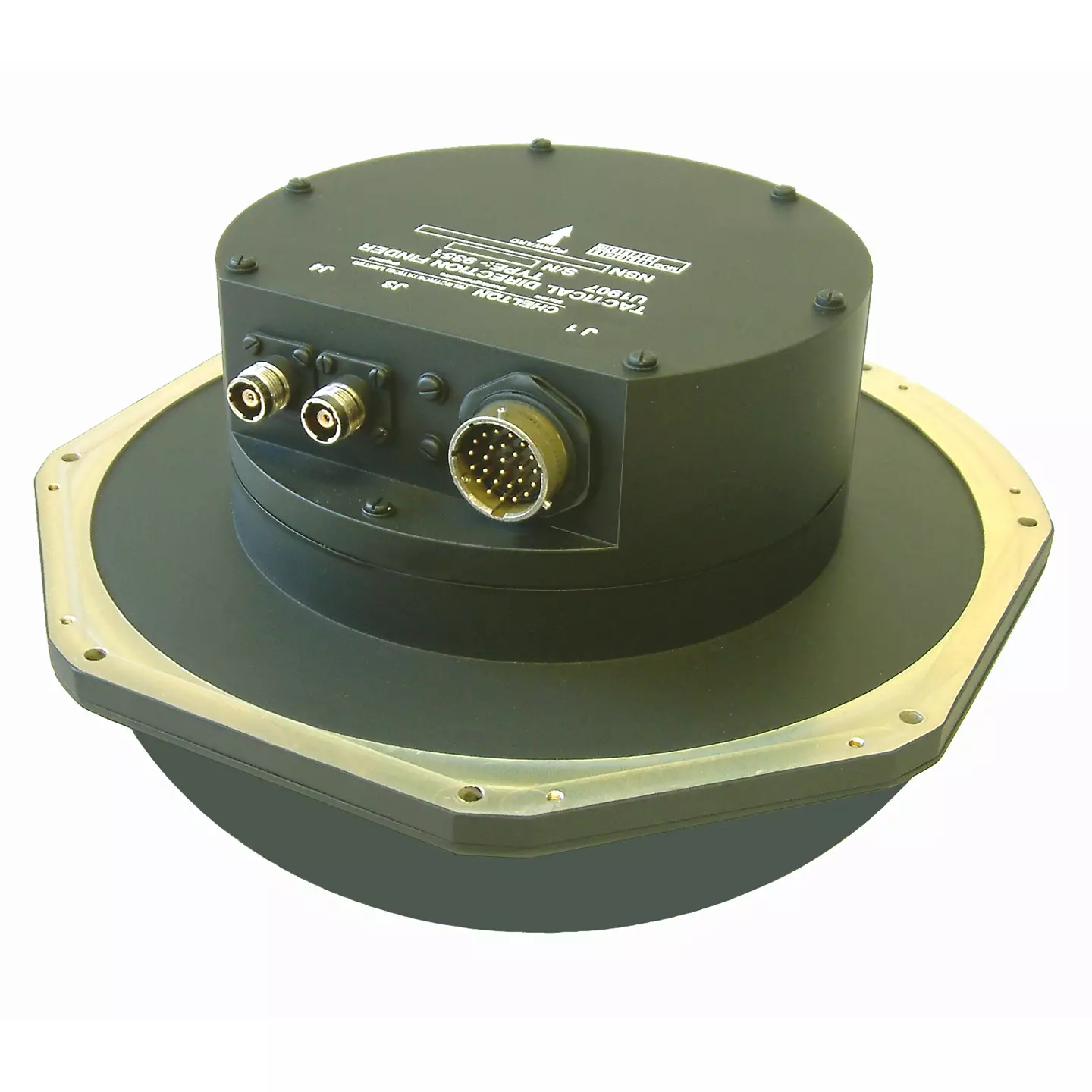

The 935 Series of tactical Direction Finders (DF) provides a range of integrated DF Antenna solutions for bus-controlled and stand-alone direction finding systems. 935 DFs include an integral synthesised receiver covering the frequency range 30 MHz – 470 MHz, together with five Guard Receivers to monitor pre-defined distress frequencies. Bearings may be taken on all six receivers simultaneously. Data decoding is provided for COSPAS-SARSAT messages and for marine DSC messages on the associated Guard Receivers. There is also the option to select sonobuoy bandwidth for DF to sonobuoys.

    • ✔COSPAS-SARSAT decoding
    • ✔Marine DSC decoding
    • ✔Discrete outputs OTPI and distress alert
    • ✔Compatible with Chelton 715-40 DF Controller
    •
Click to enlarge

Specification

30 Minimum Frequency
470 Maximum Frequency
16.0 to 31.5 V d.c., 1.6 A max Primary Power
Accuracy: Better than 5 rms (dependent on installation) Operational Performance
286 x 286 x 90 Full Dimensions LxWxH mm
3.8 Mass kg
MS3114-16-26P, GB711 5009-1, GB711 5009-2 Connector Type
In line with airframe, normal or inverted Mounting Attitude
25,000 feet Altitude
55 Continuous Operating Temperature Min - C
90 Continuous Operating Temperature Max C
EUROCAE ED-14C/RTCA DO-160C Section 8 Cat L Fixed Wing Cat Y Helicopter Vibration
Air Suitable for Platform
