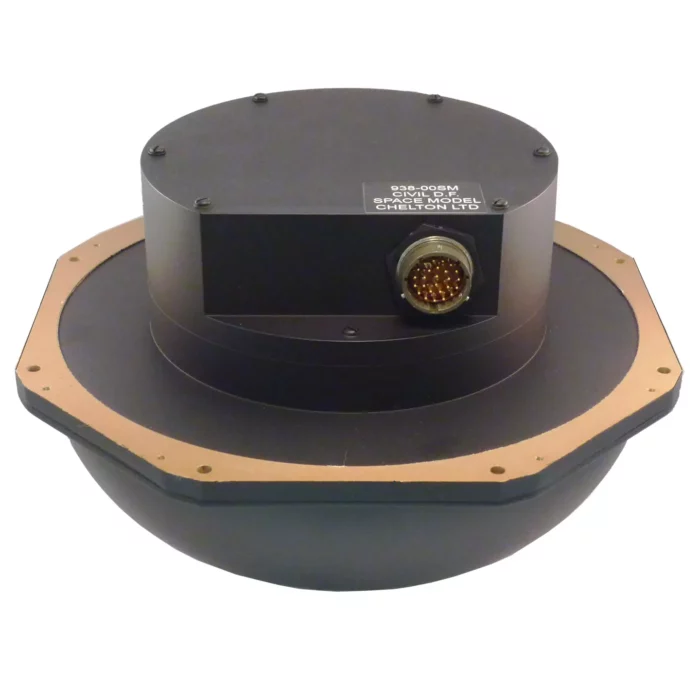

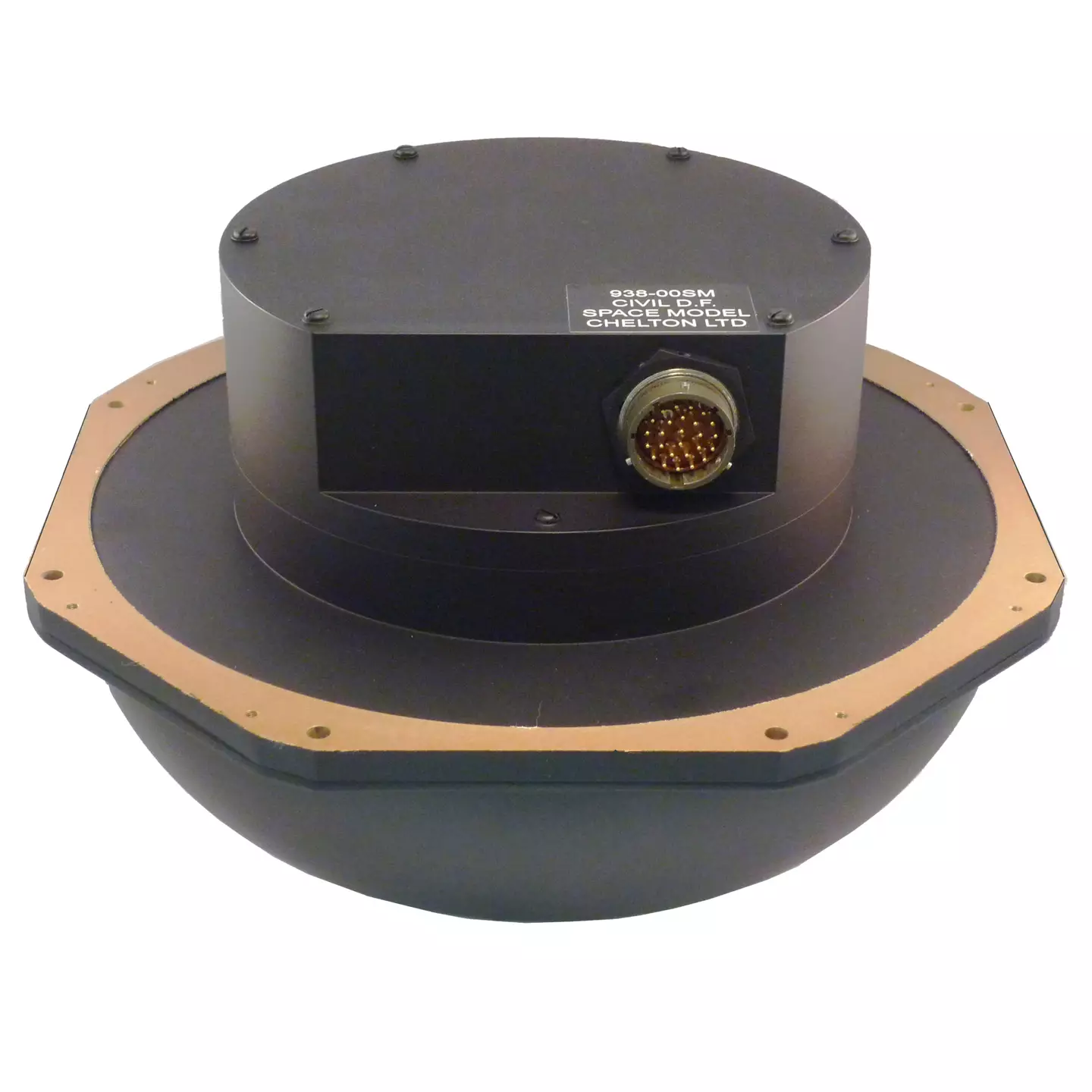

938 Series Civil DF

938 Series Civil DF

The 938 Series of civil Direction Finders (DF) provide a range of integrated DF solutions for bus-controlled and stand-alone direction finding systems. 938 DFs include an integral synthesised receiver covering the frequency range 88 MHz – 470 MHz, together with 5 Guard Receivers to monitor pre-defined distress frequencies. Bearings may be taken on all 6 receivers simultaneously. Data decoding is provided for COSPASโ€‘SARSAT messages and for marine DSC messages on the associated Guard Receivers. There is also the option to output On Top Position Indication (OTPI).

    • โœ”COSPAS-SARSAT decoding
    • โœ”Marine DSC decoding
    • โœ”Discrete outputs OTPI and distress alert
    • โœ”Compatible with Chelton 718-40 DF Controller
  • โœ”Discrete OTPI output

Specification

88 Minimum Frequency
470 Maximum Frequency
18.0 to 31.5 V dc, 1.5 A max (750 mA typical at 28 V) Primary Power
Better than 5 rms (dependent on installation) Operational Performance Accuracy:
286 x 286 x 90 Full Dimensions LxWxH mm
3.4 Mass kg
PVXT7W-16-26UP2N Mounting
25000 Altitude ft
EUROCAE ED-14G/RTCA DO-160G Sect 8, Cat S, Curve L modified Fixed Wing Curve U2 Helicopter Vibration
Rigid Mounting Method
EUROCAE ED-14G/RTCA DO-160G Sect 4, Cat B3, 7620 m Temperature Altitude
EUROCAE ED-14G/RTCA DO-160G Sect 6, Cat C External Humidity
