Active GPS Patch Antenna

20-7009 Datasheet

Active GPS Patch Antenna

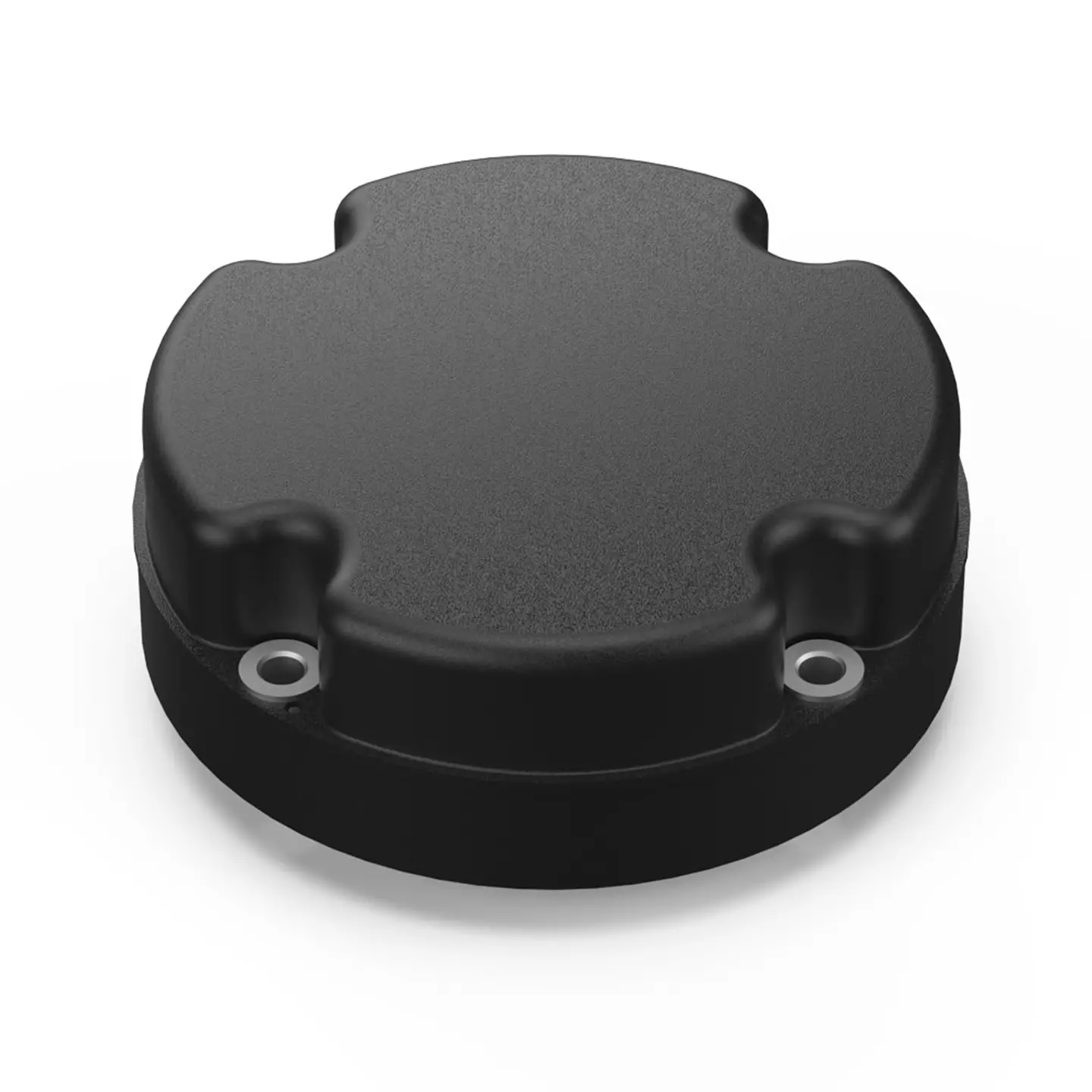

The 20-7009 Four Element CRPA Antenna is a miniature four element Global Positioning System (GPS) Controlled Reception Pattern Array (CRPA) antenna designed primarily for airborne rotary wing and ground basedn operations.

The 20-7009 consists of four light-weight, temperature stable radiating elements which operate with nominally hemispherical coverage in the GPS L1 and L2 bands.

The array is available in a variety of options, including passive and active configurations. The active configuration contains four low-noise amplifiers protected by filters, providing rejection of unwanted outofband signals, and limiters which provide protection from high power signals.

The active CRPA is designed to work in conjunction with a compatible Chelton Digital Antenna Control Unit (4 channel 7-6005, 8-channel 7-6008), which houses the anti-jam electronics functionality.

    • ✔4 GPS Patch Elements
    • ✔Interference and Jamming Resistant
    • ✔Small and light
Click to enlarge

Specification

1215.6 Minimum Frequency
1587.42 Maximum Frequency
50 Impedence
< 1.8:1 Return Loss VSWR
25.25 dB ± 1.75 dB and 28 dB ± 1.5 dB at the L1 and L2 band centres respectively at 23°C. Gain
RHCP Polarization
114.3 x 114.3 x 43.5 Full Dimensions LxWxH mm
43.5 Height Above Base Plate mm
0.5 Mass kg
SMA female connectors Connector Type
80000 Altitude ft
40 Continuous Operating Temperature Min - C
71 Continuous Operating Temperature Max C
