Antenna Selection Unit for Tuneable Antennas – 7-8001

The 7-8001 ASU consists of a dual logic control unit (LCU) combined with an RF switch. The ASU offers the capability to switch the RF and tuning control information from a pair of U/VHF radios to a pair of Chelton frequency-agile tuneable antennas, either under manual control via the ASU command interface or automatically on a timed interval.

  • ✔ Automatic switching between tuneable antennas
  • ✔ Fast response time
  • ✔ Reduced pilot workload

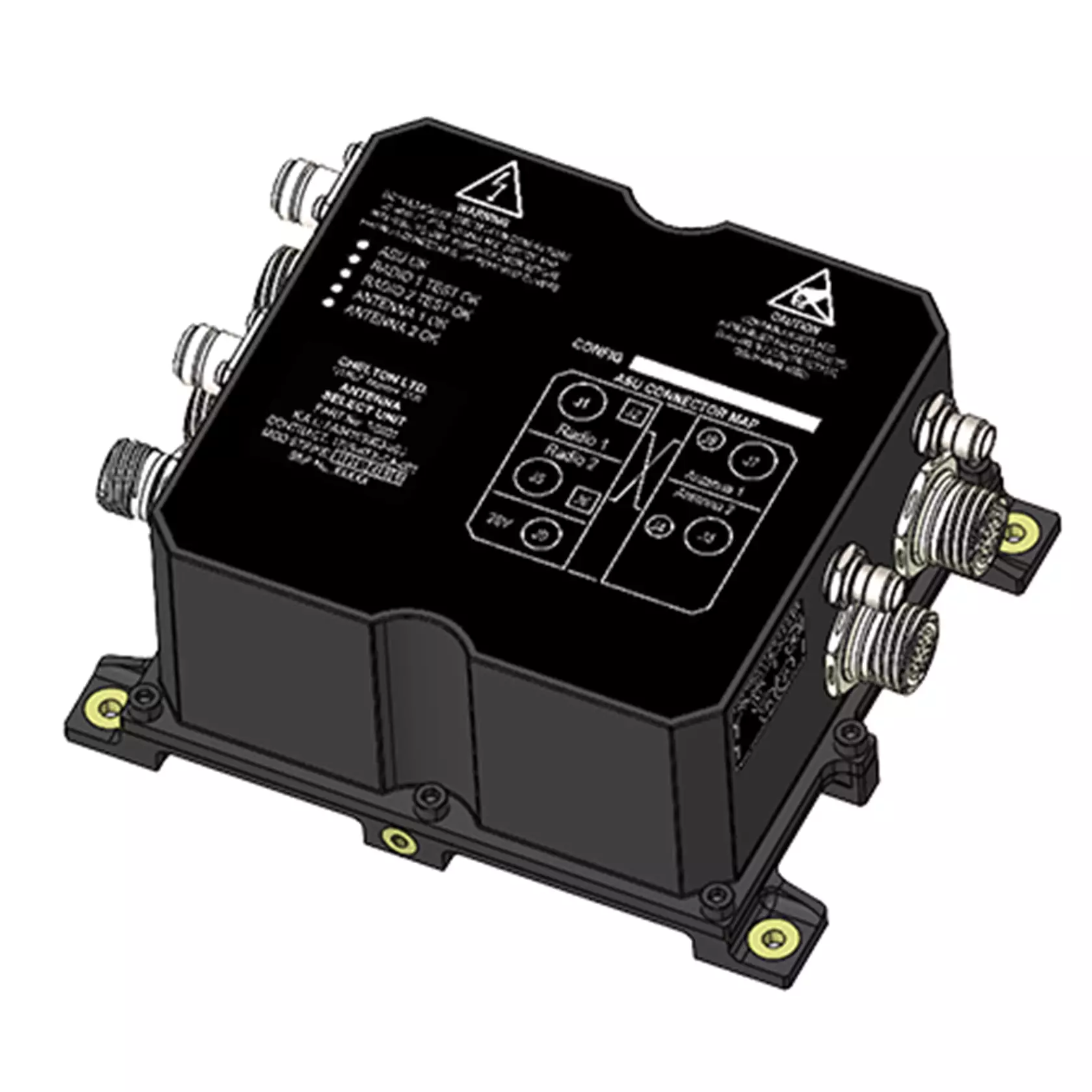

Click to enlarge

Specification

30 Minimum Frequency
500 Maximum Frequency
50 Impedence
<1.33:1 30-400MHz Return Loss VSWR
30-200MHz > -1.2 Gain
23 Peak Power Watts
23 Average Power Watts
160 x 201 x 85 Full Dimensions LxWxH mm
2.15 Mass kg
N Female Connector Type
40 Continuous Operating Temperature Min - C
71 Continuous Operating Temperature Max C
MIL-STD-810G Method 514.7 Procedure I Cat 12 Vibration
RTCA/DO160G section 22 cat A2J2L2 Lightning
