Anti-Jam GPS DACU (8-Channel)

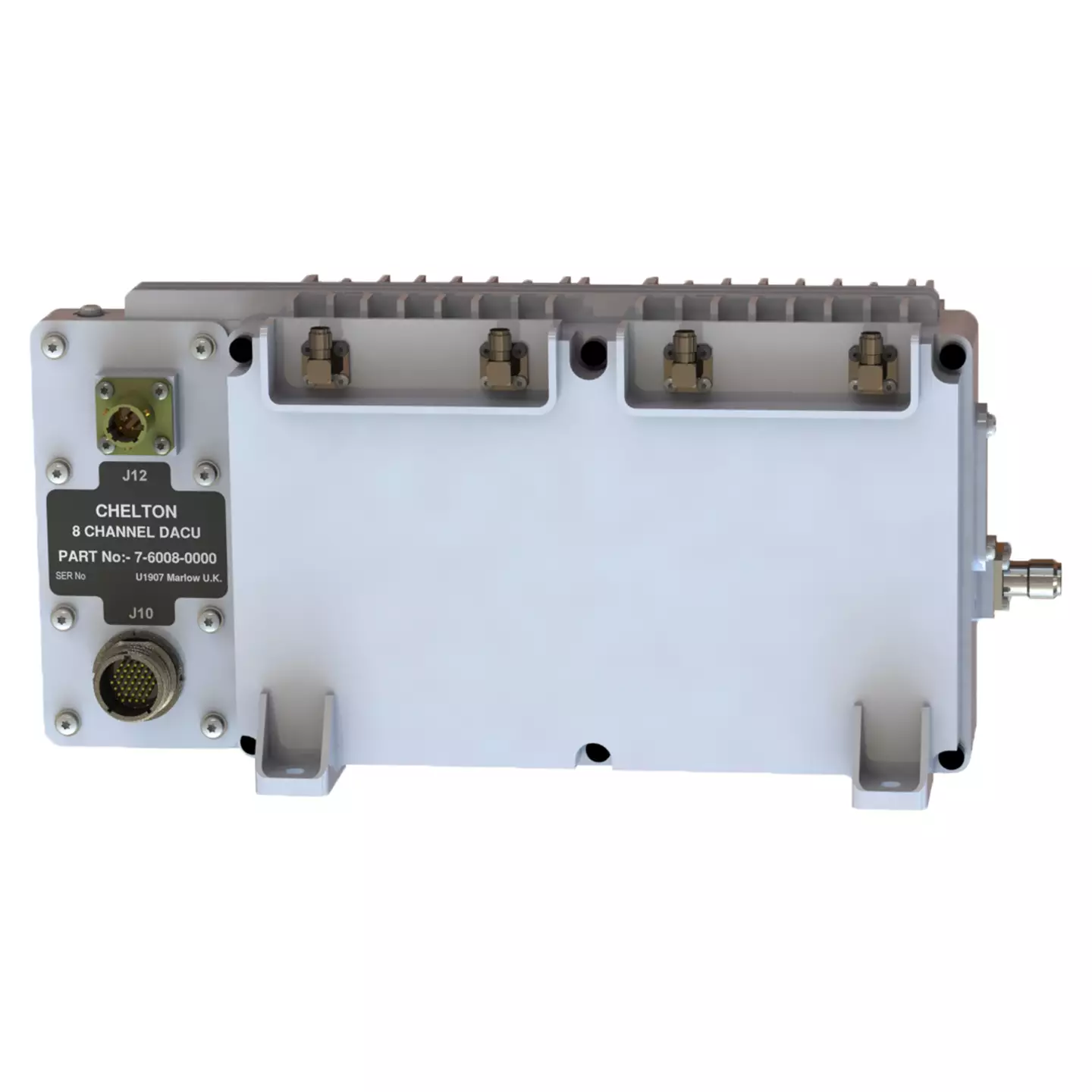

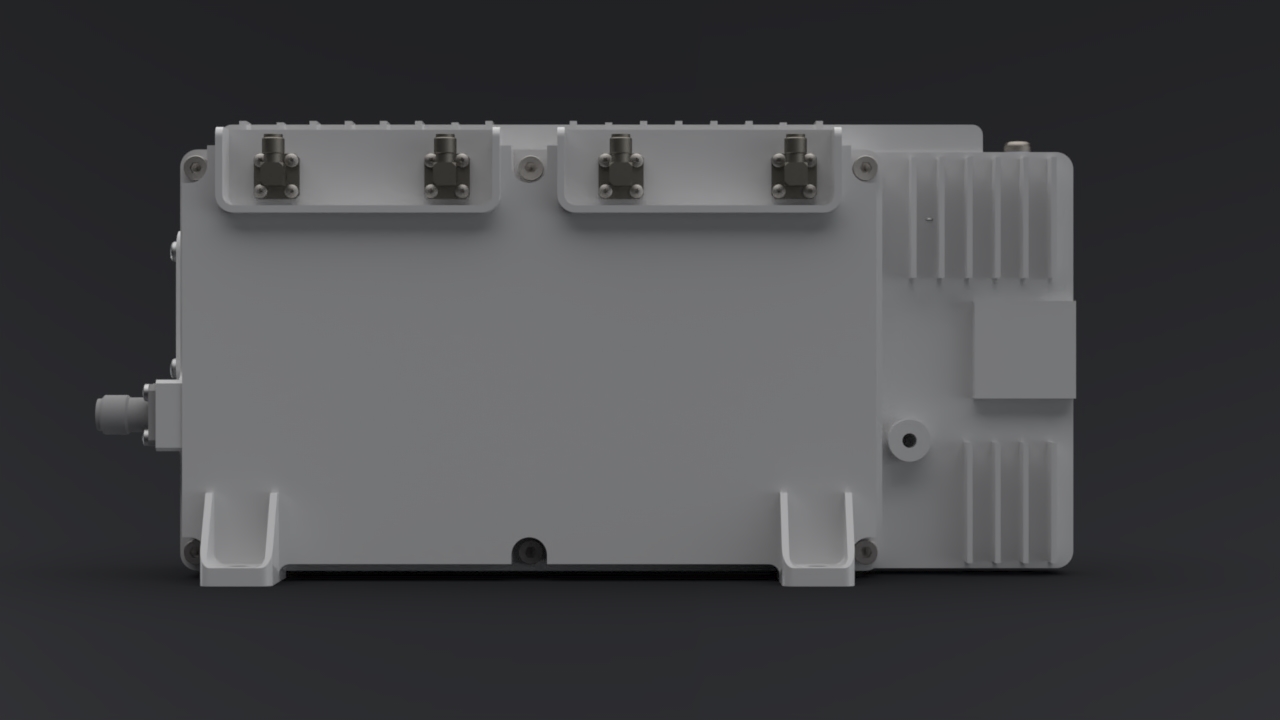

The Anti-Jam GPS DACU (Digital Antenna Control Unit), Type 7-6008, is an 8 channel GPS anti-jamming processor for use with an active controlled reception pattern array (CRPA).

The DACU mitigates narrow-band interference, using an excision process, and broadband interference by creating directed nulls in the antenna pattern. These techniques provide significant antijam protection even in highly dynamic, multi-jammer environments.

Chelton is able to provide a complete anti-jam solution for the platform. Installations can make use of a variety of CRPA options and cabling lengths, to best suit the form factor requirements of the platform. The DACU interfaces the antenna array to the GPS receiver.

The DACU is designed for size and weight constrained platforms, such as small airborne and unmanned installations. The DACU includes the ability to determine the direction of multiple spatially separated jammers with an accuracy of better than 5 degrees when the system is calibrated to the aircraft platform.

    • ✔Fully M-Code compliant
    • ✔Excision narrow-band interference protection
    • ✔STAP Nulling broad-band interference protection
    • ✔Compact and lightweight
  • ✔In use on US Army Gray Eagle UAV
  • ✔Low latency of just 29.36μs
Click to enlarge

Anti-jam GPS nulling
and excision

The DACU mitigates narrow-band interference, using an excision process, and broadband interference by creating directed nulls in the antenna pattern. These techniques provide significant anti-jam protection even in highly dynamic, multi‑jammer environments.

Chelton is able to provide a complete anti‑jam solution for the platform. Installations can make use of a variety of CRPA options and cabling lengths, to best suit the form factor requirements of the platform. The DACU interfaces the antenna array to the GPS receiver.

The DACU is designed for size and weight constrained platforms, such as small airborne and unmanned installations. The DACU includes the ability to determine the direction of multiple spatially separated jammers with an accuracy of better than 5 degrees when the system is calibrated to the aircraft platform.

ACF Image

ACF Image

Super low latency

At just 29.36μs latency, Chelton DACU Anti-Jam GPS is twice as fast as the competition. Are you sure you’re where you thought you were?

Specification

< 42 W Power Consumption
28 V dc nominal (+ 18 V to +32 V) Input Voltage
< 4.5 dB (with 20-7009 CRPA) Noise Figure
> 29.5dB Gain
131 mm (5.16”) Height
97 mm (3.82”) Width
257mm (10.12”) Length
2.06 kg (4.54 lbs) Max Weight
Operational: +71°C High Temperature
Operational: -40°C Low Temperature
25,000 ft (maximum) Altitude
Max rate: 10 m/s Rate of Climb and Descent
MIL-STD-810G, Method 514.7, Proc I, Annex D, Cat13 (Propeller Aircraft) MIL-STD-810G, Method 514.7, Proc I, Annex D, Cat14 (Helicopter) Vibration
