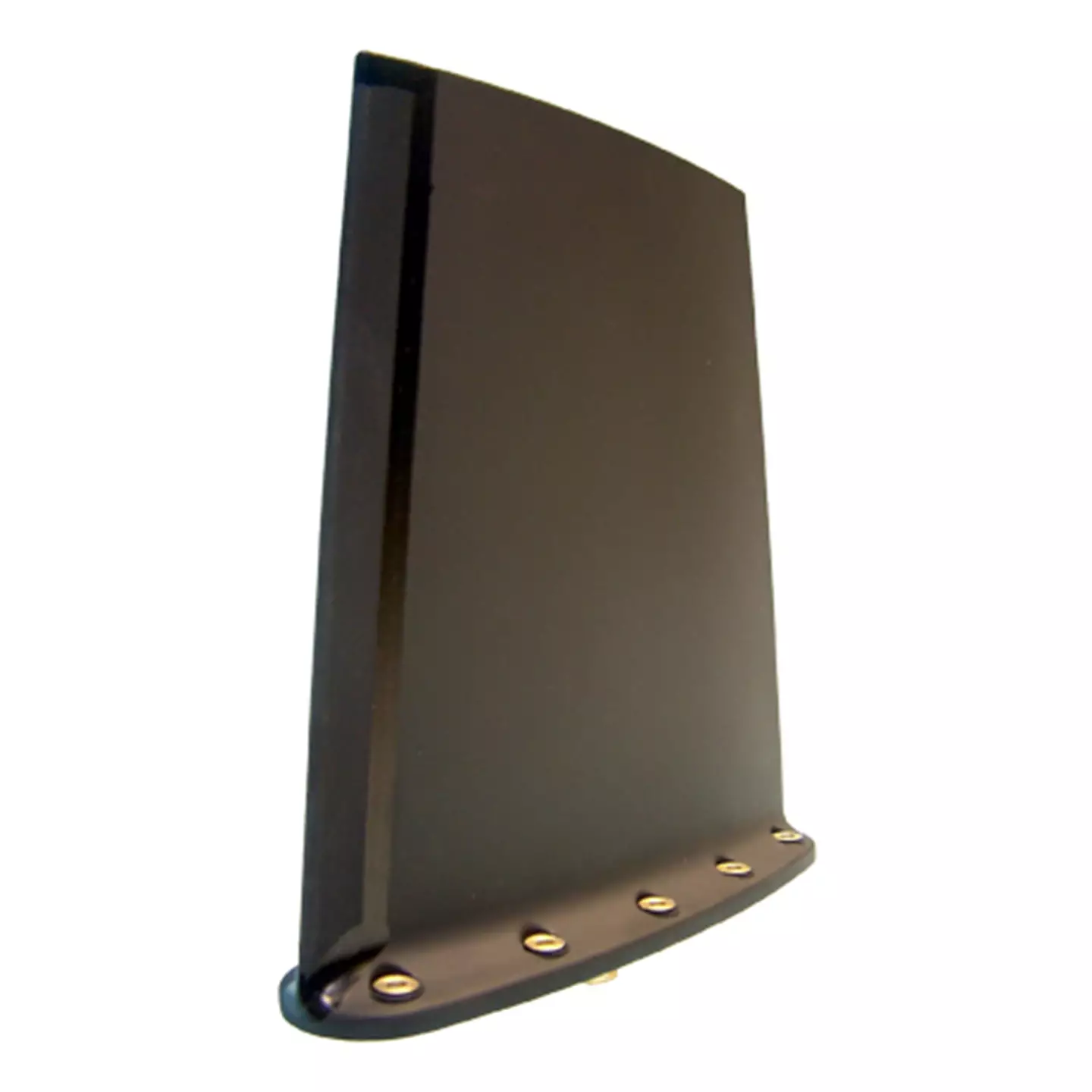

Broadband Passive Blade Antenna – 12-124

The 12-124 is a broadband passive blade antenna dedicated to the frequency bands 108-156MHz and 225-400MHz. The antenna is configured as a broadband fan. The radiating element is fed via a tuned circuit to enhance gain at 108MHz and a frequency-dependent resistive pad network to provide acceptable match at lower frequencies.

  • ✔ Supersonic
  • ✔ Lightning Protection
  • ✔ Low profile
  • ✔ PU leading edge strip
  • ✔ Extended Temperature Range available
Click to enlarge

Specification

108 Minimum Frequency
400 Maximum Frequency
50 Impedence
108-118MHZ: 3:1 max Return Loss VSWR
108MHz: -9.5 dBi Gain
Vertical Polarization
Omnidirectional Radiation Pattern Azimuth
35 Average Power Watts
236.5 x 70 x 250 Full Dimensions LxWxH mm
1.1 Mass kg
N type female Connector Type
70000 Altitude ft
54 Continuous Operating Temperature Min - C
95 Continuous Operating Temperature Max C
MIL-STD-810D Method 514.3 Proc 1 Cat 5 Vibration
MIL-STD-810D Standards
