Broadband Passive Blade Antenna – 20-200-F18LP

20-200-F18LP Datasheet

Broadband Passive Blade Antenna – 20-200-F18LP

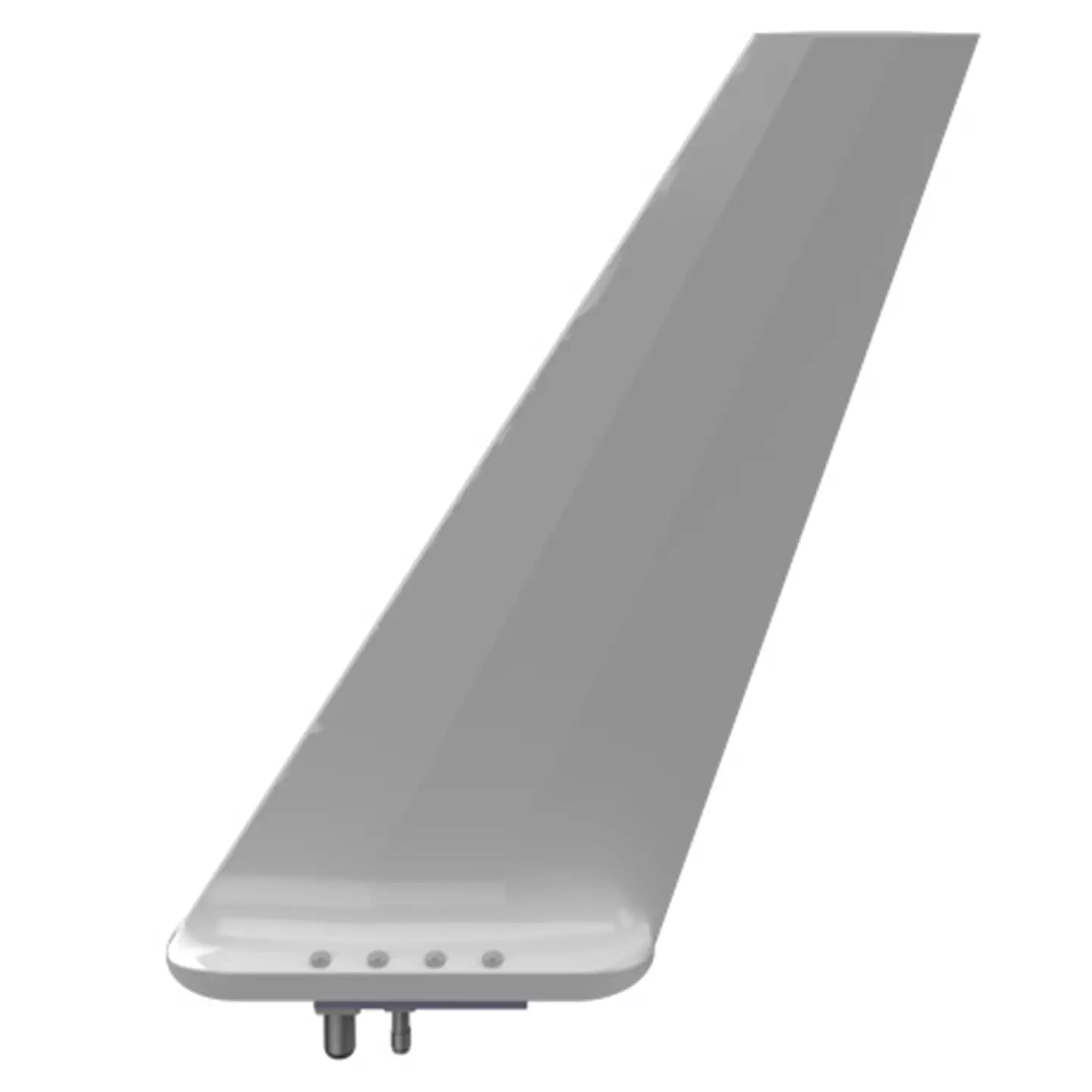

The 20-200-F18LP is a broadband passive blade antenna intended for use over the VHF and UHF communications bands of 30-88 MHz, 108-174 MHz and 225-400 MHz, plus 960-1220 MHz. It has been designed for full lightning protection and has a mechanical structure that makes it suitable for use on high performance aircraft. It is intended for general airborne applications.

  • ✔ Multiband passive
  • ✔ Lightning Protection
  • ✔ Height 312mm (12.3 inches)
  • ✔ Suitable for High Performance Aircraft
  • ✔ Gain ≤ -26dBi at 30MHz
Click to enlarge

Specification

30 Minimum Frequency
400 Maximum Frequency
50 Impedence
30- 88 MHz: ≤ 2.5:1 Return Loss VSWR
30 MHz: ≤-25 dBi Gain
Vertical Polarization
Omnidirectional Radiation Pattern Azimuth
500 Peak Power Watts
23 Average Power Watts
457 x 91 x 312 Full Dimensions LxWxH mm
1.8 Mass kg
U/VHF: TNC Female Connector Type
50000 Altitude ft
51 Continuous Operating Temperature Min - C
70 Continuous Operating Temperature Max C
MIL-STD-810E, Method 514.6, Proc I, cat 5 Vibration
MIL-STD-810 Standards
