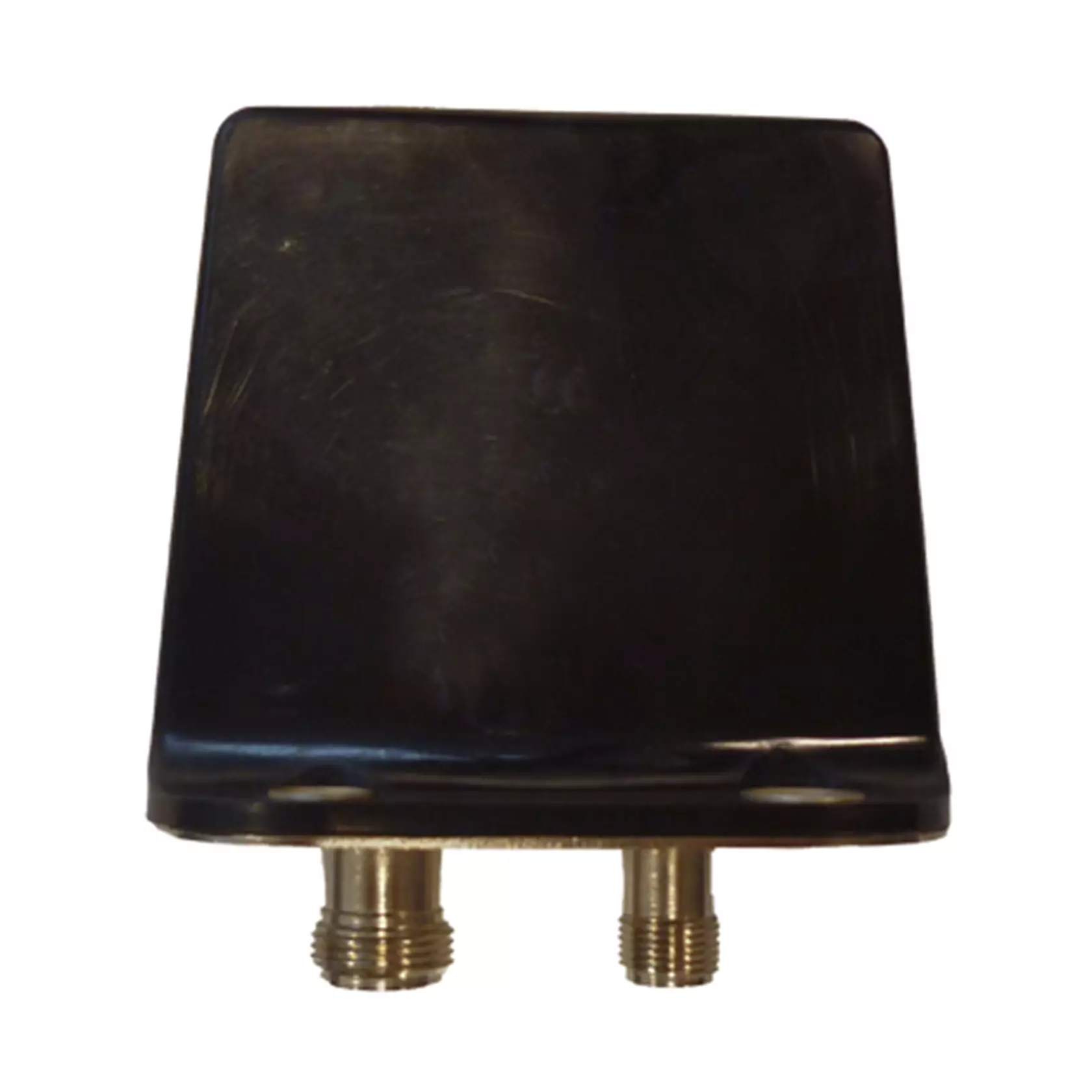

Combined MLS/DME-P Blade Antenna – 10-52

Combined MLS/DME-P Blade Antenna – 10-52

Operating in both L Band (960-1215 MHz) and C Band (5.0 to 5.1 GHz) frequency ranges the 10-52 is a high performance dual-band antenna. It supports MLS-RNAV and DME-Precision functions. This antenna features an aerodynamic, rugged housing and is designed for operation on high performance aircraft.

  • ✔ Dual band
  • ✔ Combined Functions in a Single Housing
  • ✔ Lightning Protected D-Band Element
  • ✔Erosion Resistant
  • ✔ Rugged
Click to enlarge

Specification

960 Minimum Frequency
5100 Maximum Frequency
960 - 1215 MHz: < 1.5:1 Return Loss VSWR
Peak gain ≤ 6 dBi Gain
Vertical Polarization
Omnidirectional Radiation Pattern Azimuth
1500 Peak Power Watts
15 Average Power Watts
86 x 39 x 79 Full Dimensions LxWxH mm
0.25 Mass kg
960 - 1215 MHz: N Type Female Connector Type
35000 Altitude ft
45 Continuous Operating Temperature Min - C
71 Continuous Operating Temperature Max C
MIL-STD-810D Method 514.3 Vibration
DO-160 Standards
