Combined SATCOM, UHF and GPS Antenna – 19-450-10N

19-450 Datasheet

Combined SATCOM, UHF and GPS Antenna – 19-450-10N

The 19-450 Series and the 19-450-10 are combined UHF satellite communications and GPS antennas. The antenna is low profile in construction and designed for airborne applications.

  • ✔Combined UHF satcom and GPS in single antenna
  • ✔Low profile
  • ✔MUOS Compatible

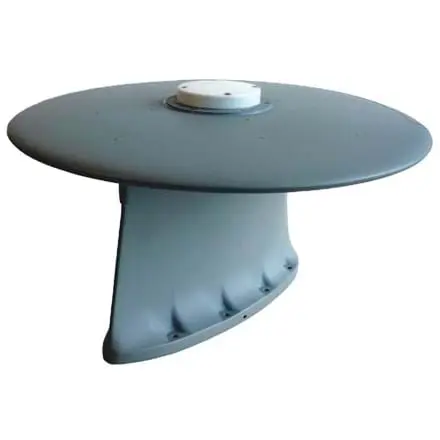

Click to enlarge

Specification

225 Minimum Frequency
400 Maximum Frequency
50 Impedence
Low Angle: 2.0:1 max Return Loss VSWR
Low Angle UHF: Average within 2 dB of a quarter wave stub Gain
Low Angle: Vertical Polarization
N female Connector Type
+71°C Continuous Operating Temperature Min - C
-51°C Continuous Operating Temperature Max C
30,000 ft Altitude
MIL-STD-810E, Method 514.4, Procedure I, Category 6 Vibration
