Comm/Nav UHF Antenna – 16-1

16-1 Datasheet

Comm/Nav UHF Antenna – 16-1

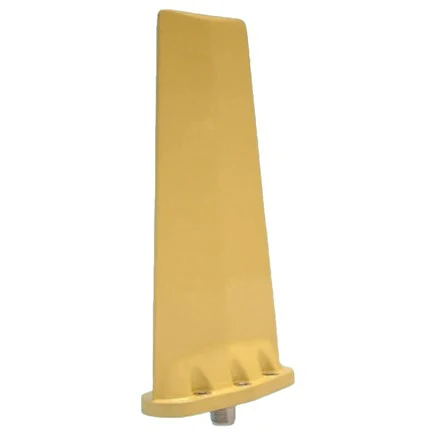

Type 16-1 is a lightweight, broadband UHF blade antenna for transmission and reception of communications/navigation signals over the frequency band 225 MHz to 400 MHz.

  • ✔ Solid Glass Fibre
  • ✔ Protective polyurethane or expoxy paint
Click to enlarge

Specification

225 Minimum Frequency
400 Maximum Frequency
50 Impedence
< 2.0:1 Return Loss VSWR
+4.0 dBi minimum Gain
Vertical Polarization
Omnidirectional Radiation Pattern Azimuth
40 Peak Power Watts
40 Average Power Watts
232 x 121 x 52 Full Dimensions LxWxH mm
0.6 Mass kg
N Female Connector Type
15000 Altitude ft
40 Continuous Operating Temperature Min - C
70 Continuous Operating Temperature Max C
BS 3G 100, Pt 2, Sect 3:3:1, Region A, Cat 5 Vibration
BS 3G 100 Standards
