Conformal GPS GLONASS Antenna – 20-2004

Conformal GPS GLONASS Antenna – 20-2004

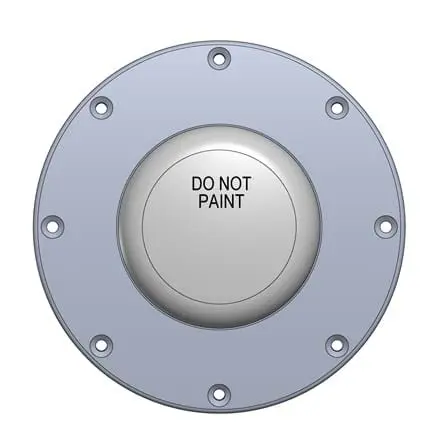

The 20-2004 antenna is omnidirectional in azimuth with a hemispherical coverage over the GPS L1 and GLONASS G1 frequency bands. It is of conformal construction and is supplied to meet local airframe contours. It has a single patch which provides righthand circularly polarized radiation. The interface with aircraft is via a TNC (female) coaxial connector.

  • ✔ Conformal
  • ✔ GPS L1 and GLONASS G1 coverage
Click to enlarge

Specification

1565 Minimum Frequency
1610 Maximum Frequency
50 Impedence
< 1.8:1 Return Loss VSWR
Elevation Min Gain (dBiC) Max Gain (dBiC) Gain
RHCP Polarization
Omnidirectional Radiation Pattern Azimuth
0.42 Mass
TNC female Connector
80000 Altitude ft
55 Continuous Operating Temperature Min
95 Continuous Operating Temperature Max
Air Suitable for Platform
