Conformal L-band Antenna – 10-3002-2

10-3002-2 Datasheet

Conformal L-band Antenna – 10-3002-2

Type 10-3002-1 and Type 10-3002-2 are passive conformal antennas for fast jets. The antennas operate over a broad frequency within the L band of 960 to 1220 MHz. They offer omni azimuthal radiation patterns, typical of quarter-wave monopole over a ground plane.

  • ✔ Fully Conformal
  • ✔ High Power Capacity
  • ✔ Lightening Zone 1A/2A
  • ✔ Suitable for fighter jets

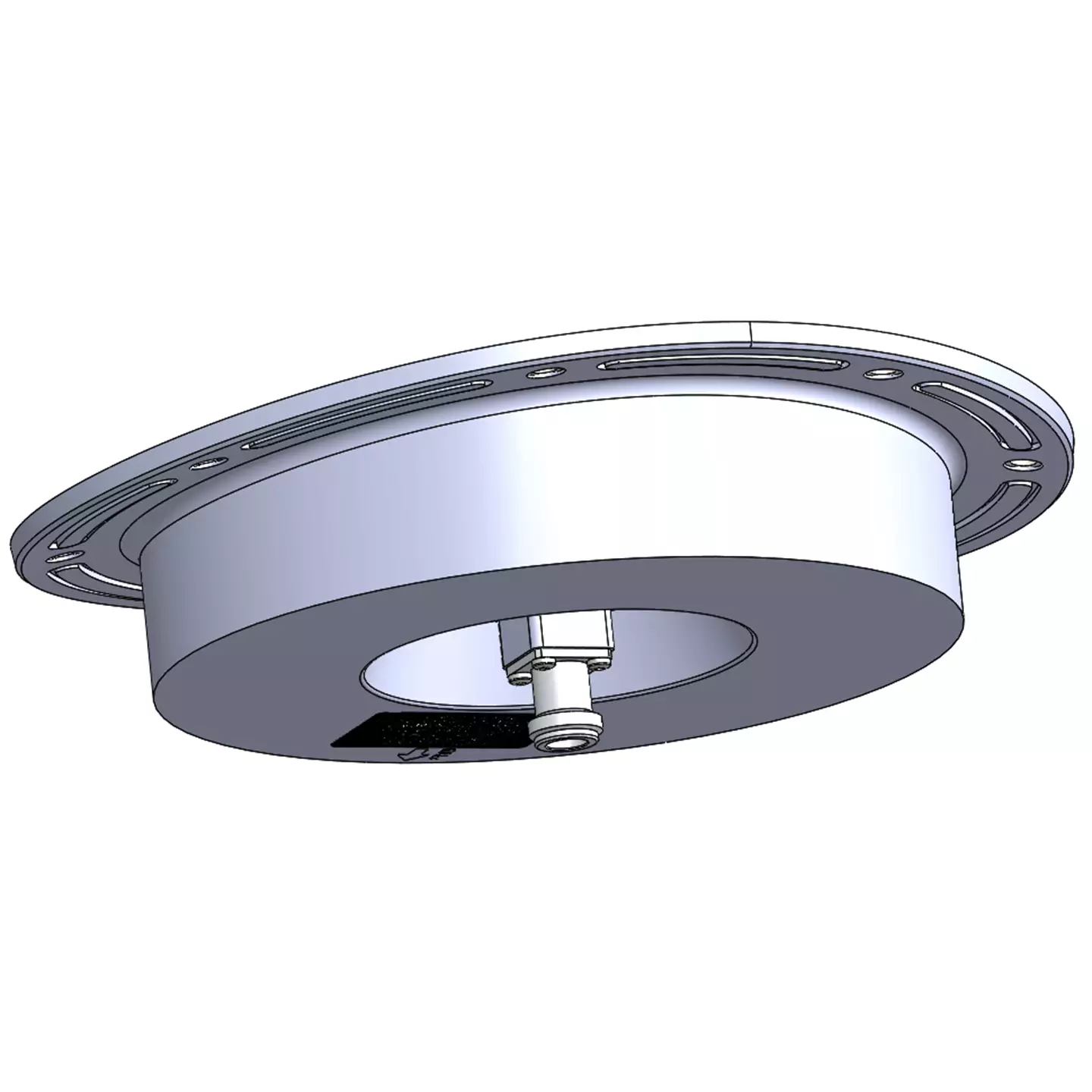

Click to enlarge

Specification

960 Minimum Frequency
1220 Maximum Frequency
50 Impedence
≤ 2.0:1 Return Loss VSWR
>2 dBi Gain
Average Power Watts Polarization
0.7 (typ) dependant on the local curvature Mass kg
N Female Connector Type
62 Continuous Operating Temperature Min - C
89 Continuous Operating Temperature Max C
RTCA/DO-160G Sect 23, 2A2A Lightning
Mil Std 810G Standards
