Conformal Marker Beacon – 17-4000

17-4000 Datasheet

Conformal Marker Beacon – 17-4000

Type 17-4000 is a fully conformal marker beacon antenna with peak of beam perpendicular to the aperture.

  • ✔ Fully conformal
  • ✔ Highly rugged
  • ✔ Wide temperature range
  • ✔Suitable for supersonic fighter jets

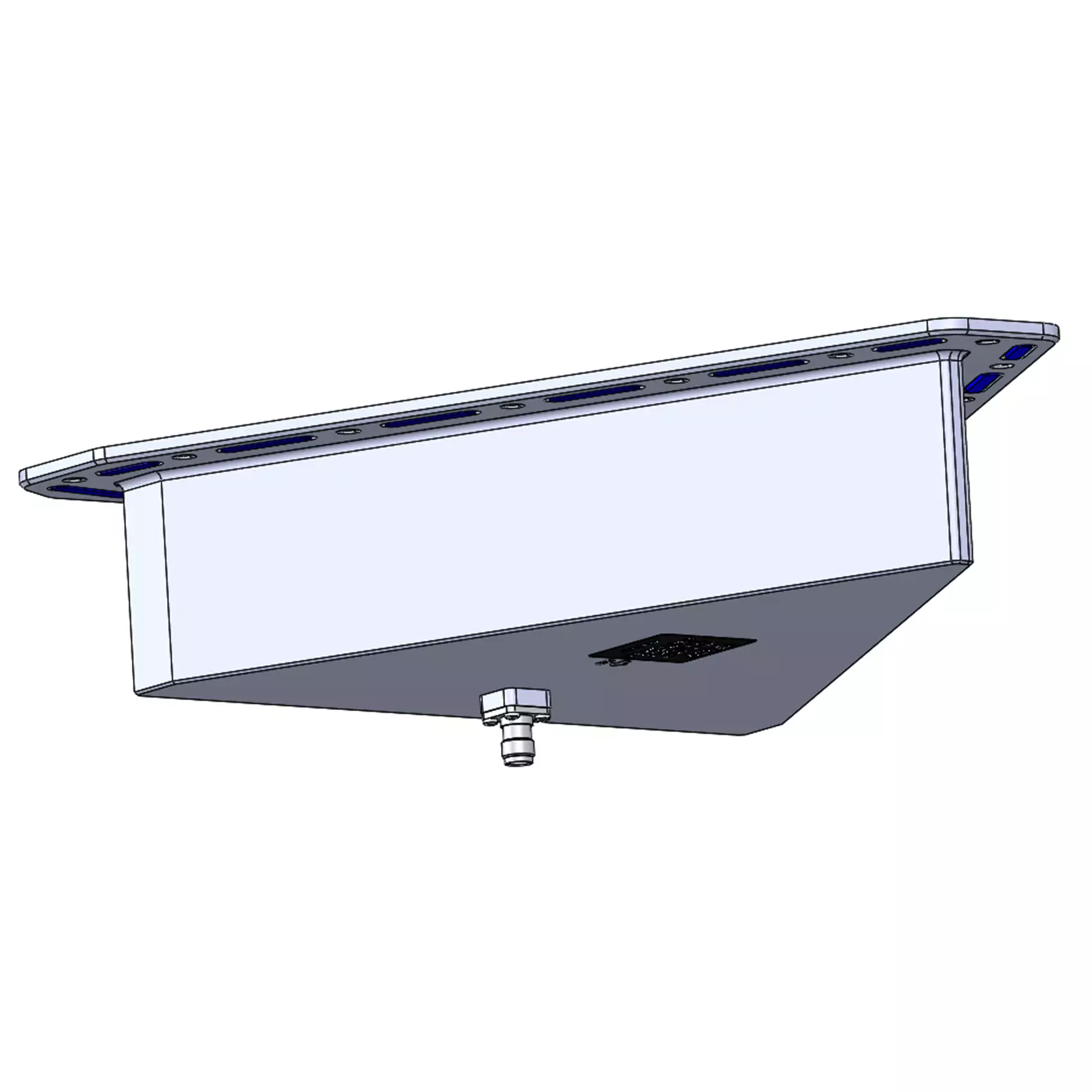

Click to enlarge

Specification

74.99 Minimum Frequency
75.01 Maximum Frequency
≤ 2.0:1 Return Loss VSWR
> -16dB below dipole Gain
Linear||Horizontal Polarization
1 Peak Power Watts
1 Average Power Watts
50 Impedence
318 x 371 x 79 Full Dimensions LxWxH mm
1.5 Mass kg
TNC Female Connector Type
62 Continuous Operating Temperature Min - C
89 Continuous Operating Temperature Max C
RTCA/DO-160G Sect 23, 2A2A Lightning
DO-160 Standards
