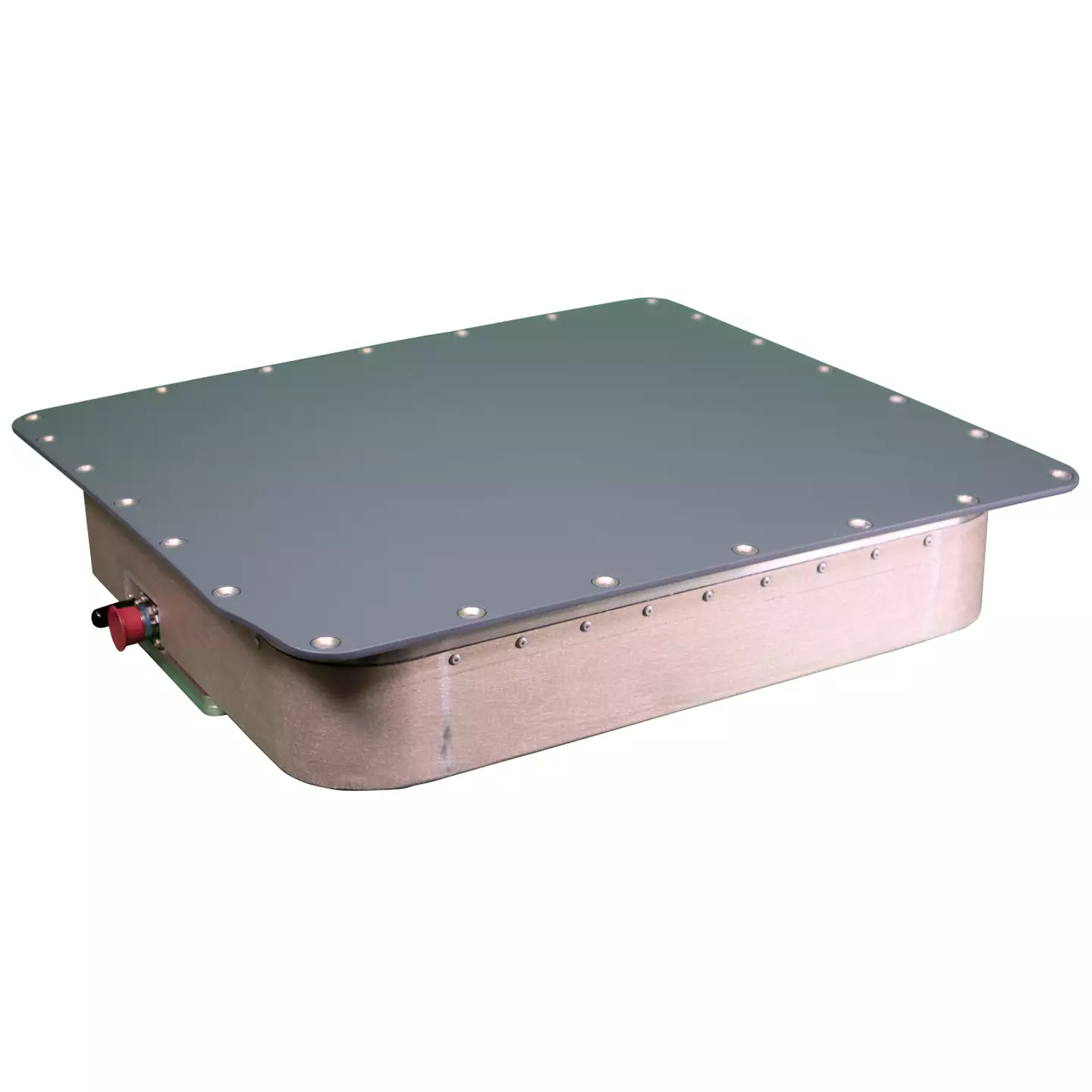

Conformal Tuneable U/VHF Antenna – 10-3003-2

Antenna types 10-3003-1 and 10-3003-2 are multiband conformal tuneable antennas designed for fast jets to provide communications in the frequency range from 30 MHz to 400 MHz (with unused frequency gaps in the bands: 88 – 108 MHz and 174 – 225 MHz).

The 7-8001 offers the capability to switch the RF and tuning control information from a pair of U/VHF radios to a pair of 10-3003 antennas, either under manual control via the ASU command interface or automatically on a timed interval.

The system is capable of providing an interface to current fast frequency hopping radios and is capable of meeting tuning times with modes such as Havequick II and Saturn.

  • ✔ Fully Conformal
  • ✔ Lightning Protection
  • ✔ Equivalent Performance to 9 Inch Passive Blade
  • ✔ Suitable for Supersonic Applications
Click to enlarge

Specification

30 Minimum Frequency
400 Maximum Frequency
50 Impedence
30 - 88 MHz < 2.5:1 (return loss > 7.36 dB) Return Loss VSWR
30MHz > -29dBi Gain
Vertical Polarization
23 Peak Power Watts
23 Average Power Watts
606 x 272 x 128 Full Dimensions LxWxH mm
4.31 Mass kg
N(F) Connector Connector Type
62 Continuous Operating Temperature Min - C
80 Continuous Operating Temperature Max C
RTCA/DO-160G Sect 23, 1C1C Lightning
