Conformal UHF Satcom Antenna – 19-405-01
Conformal UHF Satcom Antenna – 19-405-01

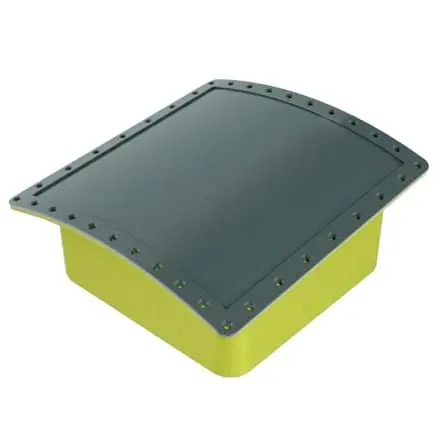

The 19-405-01 is a conformal UHF satcom antenna designed for installation on the F-15 aircraft nose cavity.
- ✔ Fully Conformal
- ✔ Rugged
- ✔ High Temperature
Specification
243
Minimum Frequency
318
Maximum Frequency
50
Impedence
≤2.0:1
Return Loss VSWR
≤0 dBiC avg at zenith
Gain
Vertical
Polarization
Omnidirectional
Radiation Pattern Azimuth
200
Peak Power Watts
200
Average Power Watts
332 x 320 x 150
Full Dimensions LxWxH mm
3.8
Mass kg
TNC Female
Connector Type
70000
Altitude ft
62
Continuous Operating Temperature Min - C
73
Continuous Operating Temperature Max C
MIL-STD-810C, Method 514.2, Curve C (modified)
Vibration
MIL-STD-811
Standards
