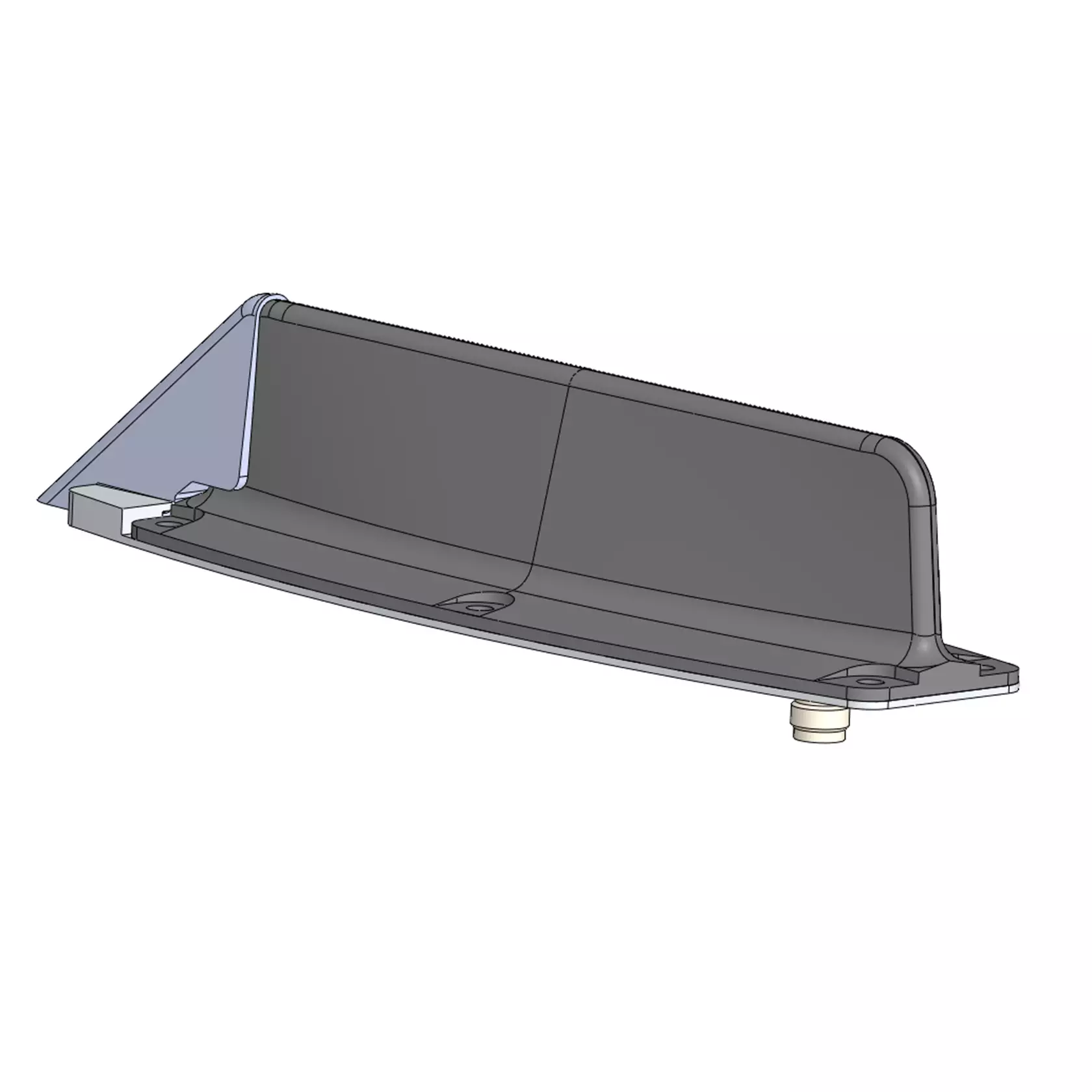

Directional IFF Blade Antenna with angled leading edge – 9-1000

Directional IFF Blade Antenna with angled leading edge – 9-1000

The 9-1000 is a directional IFF antenna designed for use in interferometry systems operating in the frequency bands 1030 MHz ± 12 MHz and 1090 MHz ± 12 MHz. The antenna is intended for use in general subsonic airborne applications. This variant has an angled PEEK leading edge designed to deflect cables. The antenna is configured as a monopole Yagi array. The relative positions of the driven element, reflector and directors ensure high gain and high front to back ratio.

  • ✔ High Front-to-back ratio
  • ✔Phase Stable
  • ✔Cable deflecting leading edge
Click to enlarge

Specification

1030 Minimum Frequency
1090 Maximum Frequency
50 Impedence
> 14 dB (VSWR < 1.5:1) Return Loss VSWR
+5 dB relative to a quarter wave monopole in the forward direction Gain
Vertical Polarization
Directional Radiation Pattern Azimuth
1000 Peak Power Watts
205 x 63 x 49 Full Dimensions LxWxH mm
0.29 Mass kg
TNC Female Connector Type
66000 Altitude ft
55 Continuous Operating Temperature Min - C
85 Continuous Operating Temperature Max C
MIL-STD-810D Vibration
MIL-STD-810 Standards
