Dual band high efficiency blade antenna with VHF and L-Band – 20-200-20

The 20-200-20 is a high efficiency blade antenna dedicated to the frequency bands 118 MHz to 156 MHz and 960 MHz to 1220 MHz. The antenna is designed for general airborne application.

  • ✔ High efficiency blade
  • ✔ Lightning Protection
  • ✔ VHF and L-Band

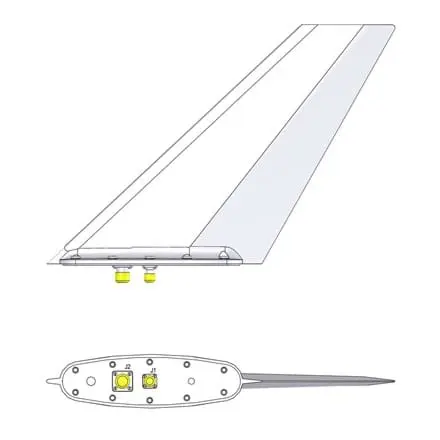

Click to enlarge

Specification

118 Minimum Frequency
1220 Maximum Frequency
50 Impedence
118 MHz to 156 MHz ≤ 2.5:1, 960 MHz to 1220 MHz ≤ 2.0:1, 1000 MHz to 1100 MHz ≤ 1.8:1 Return Loss VSWR
30 MHz: 118 MHz to 156 MHz 1.5 dBi, 960 MHz to 1220 MHz +1 dBi Gain
Vertical Polarization
Omnidirectional Radiation Pattern Azimuth
1500 Peak Power Watts
25 Average Power Watts
450.9x72.4x311.2 Full Dimensions LxWxH mm
1.5 Mass kg
L-Band: N Female, VHF: TNC Female Connector Type
55 Continuous Operating Temperature Min - C
70 Continuous Operating Temperature Max C
MIL-STD 810D, Method 514.3, Procedure 1 MIL-T-5422F(AS) Vibration
Protected Lightning
