Dual band Passive V/UHF blade antenna – 12-64

12-64 Datasheet

Dual band Passive V/UHF blade antenna – 12-64

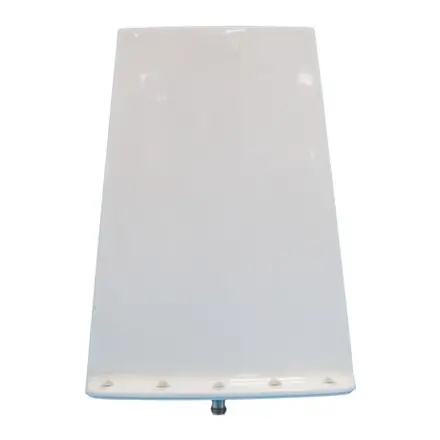

The 12-64 is a dual band V/UHF antenna designed for use over the frequency ranges 116-176 MHz and 225-400 MHz in general subsonic airborne applicatons.

  • ✔
Click to enlarge

Specification

116 Minimum Frequency
400 Maximum Frequency
50 Impedence
116 - 176 MHz <2.5:1 max Return Loss VSWR
116 - 176 MHz >-2 dBi average Gain
Vertical Polarization
Omnidirectional Radiation Pattern Azimuth
25 Peak Power Watts
25 Average Power Watts
236 x 70 x 318 Full Dimensions LxWxH mm
1.13 Mass kg
12-64 N Female Connector Type
30000 Altitude ft
54 Continuous Operating Temperature Min - C
71 Continuous Operating Temperature Max C
MIL-STD-810E. Method 514.4. Proc I. Cat 10 Vibration
12-64 Datasheet
