Dual-band UHF and L-band Blade Antenna – 9-34

9-34 Datasheet

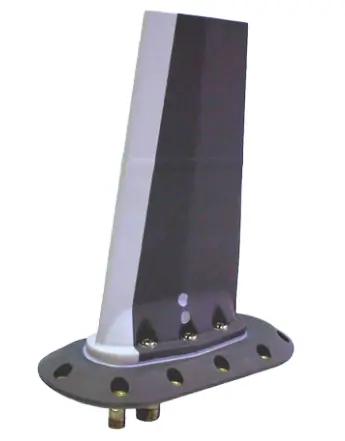

Dual-band UHF and L-band Blade Antenna – 9-34

The 9-34 is a combined UHF/Lband antenna designed to provide communications over the frequency bands 225 to 400 MHz and 960 to 1220 MHz and intended for use in high performance applications.

The 9-34 is configured as a single broadband monopole structure, formed by silver loaded paint on the exterior
of a high strength blade. Incorporated in the metallisation are decoupling techniques to prevent corruption of the elevation pattern at a high frequencies.

Additionally the antenna incorporates an internally fitted diplexer to provide isolation between the bands.

  • ✔Dual band passive
  • ✔ Aerodynamic
  • ✔ High temperature
  • ✔Rugged
Click to enlarge

Specification

225-1220 MHz Frequency
4000 watts max Power Handling
50 Ω Impedance
≤2:1 225-400 MHz VSWR
Vertical Polarisation
191 x 70 x 244mm Dimensions (LxWxH)
0.91 kg Weight
TNC female Connector
54 Continuous Operating Temperature Min - C
138 Continuous Operating Temperature Max C
70,000 ft Altitude
MIL-STD-810 Standards
