Dual Function Conformal Antenna – 10-3005-1

10-3005-1 Datasheet

Dual Function Conformal Antenna – 10-3005-1

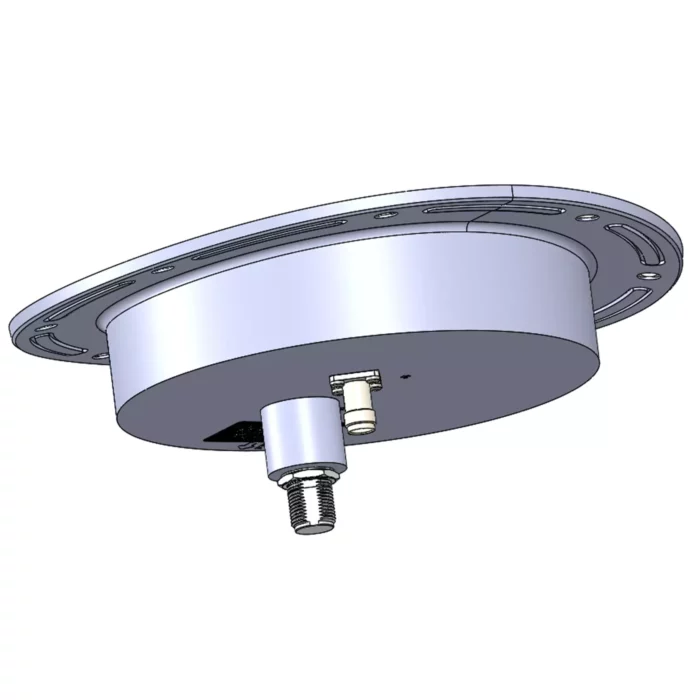

Type 10-3005-1 and Type 10-3005-2 are passive conformal antennas for fast jets. The antennas offer both IFF and S-band functions that operate from two separate interface ports. They offer omni azimuthal radiation patterns, typical of quarter-wave monopole over a ground plane.

  • ✔ Fully Conformal
  • ✔ Lightning Zone 1C/2A
  • ✔ High Power Capacity
  • ✔ Suitable for supersonic fighter jets
Click to enlarge

Specification

1030 Minimum Frequency
2400 Maximum Frequency
50 Impedence
< 1.5:1 Return Loss VSWR
IFF> 3dBi S-band >4 dBi Gain
Linear||Vertical Polarization
0.9 Mass kg
L-band: TNC female connector Connector Type
62 Continuous Operating Temperature Min - C
80 Continuous Operating Temperature Max C
RTCA/DO-160G Sect 23, 1C1C Lightning
Mil Std 810G Standards
