Dual Function Conformal Antenna – 10-3005-2

Type 10-3005-1 and Type 10-3005-2 are passive conformal antennas for fast jets. The antennas offer both IFF and S-band functions that operate from two separate interface ports. They offer omni azimuthal radiation patterns, typical of quarter-wave monopole over a ground plane.

  • ✔ Fully Conformal
  • ✔ Lightning Zone 1C/2A
  • ✔ High Power Capacity
  • ✔ Suitable for supersonic fighter jets

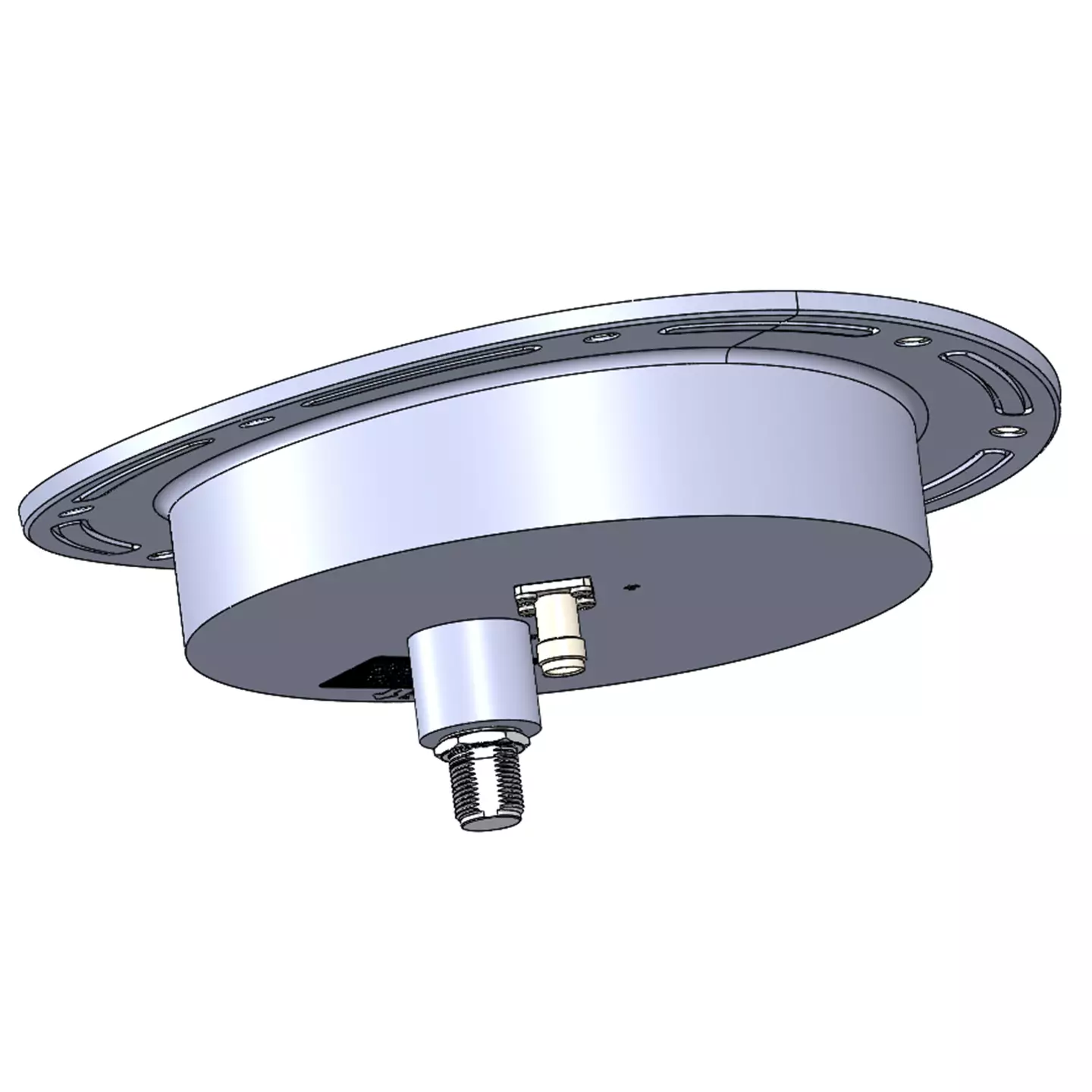

Click to enlarge

Specification

1029.8 Minimum Frequency
2400 Maximum Frequency
50 Impedence
< 1.5:1 Return Loss VSWR
IFF > 3 dBi S-band > 4 dbi Gain
Linear||Vertical Polarization
(220-240) x 90 Full Dimensions LxWxH mm
0.86 Mass kg
L-band: TNC female connector Connector Type
62 Continuous Operating Temperature Min - C
89 Continuous Operating Temperature Max C
RTCA/DO-160G Sect 23, 2A2A Lightning
Mil Std 810G Standards
