Dual Polarised Blade Antenna – 36-1010

Dual Polarised Blade Antenna – 36-1010

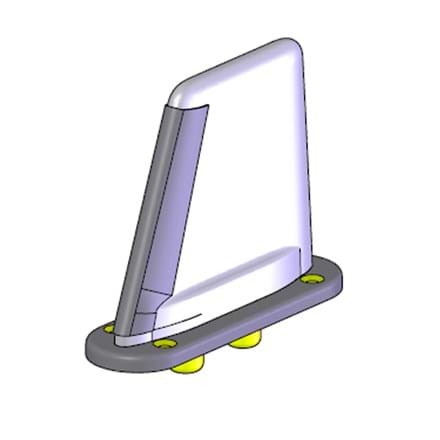

Type 36-1010 is an airborne passive dual polarised blade antenna incorporating two ports; one each for vertical and horizontal linear polarisations. The operational frequency band for both ports is 3.30 to 3.33 GHz with each providing omni azimuthal radiation patterns, typical of quarter-wave monopoles over a ground plane. The Radiating Element (RE) is incorporated within a rigid radome mounted on an aluminium baseplate. The overall maximum size, excluding connectors, is 104.5mm height, 43mm width and 137mm length.

  • ✔Dual polarised
  • ✔ Rigid radome
  • ✔Aluminium base
Click to enlarge

Specification

3300 Minimum Frequency
3330 Maximum Frequency
50 Impedence
< 2.0:1 Return Loss VSWR
Port J1 - >6.5dBi Gain
Port J1 – Linear, Horizontal Polarization
Port J1:– nominally omni with ±1.7dB ripple at 20° below horizon Radiation Pattern Azimuth
Port J1 – Peak pointing: 15° to 25° below horizon Radiation Pattern Elevation
137 x 43 x 104.5 Full Dimensions LxWxH mm
0.3 Mass kg
TNC Female Connector Type
55000 Altitude ft
55 Continuous Operating Temperature Min - C
70 Continuous Operating Temperature Max C
