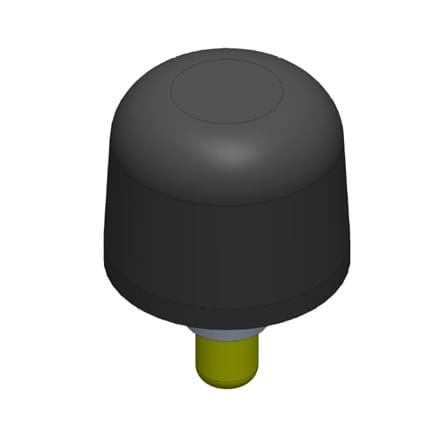

ECM Antenna – 10-31

Wide band electronic counter-measure (ECM)/electronic surveillance measure (ESM) antenna

  • ✔Suitable for ECM and ESM applications
  • ✔ Wideband
Click to enlarge

Specification

1000 Minimum Frequency
10000 Maximum Frequency
50 Impedence
1 - 1.5 GHz <5:1; Return Loss VSWR
Nominally +3.0 dBiL 1 - 10 GHz ) Gain
Vertical Polarization
0.125 Mass kg
TNC Female Connector Type
50000 Altitude ft
54 Continuous Operating Temperature Min - C
55 Continuous Operating Temperature Max C
