Elliptical Top Plate Loaded V/UHF Blade Antenna – 12-333-4

Elliptical Top Plate Loaded V/UHF Blade Antenna – 12-333-4

The antenna system comprises of two tubular half loops which are orientated in anti-phase.

  • ✔ Broadband Passive
  • ✔Gain ≤ -23dBi at 30MHz
  • ✔ Height 229mm (9 inches)
  • ✔ Elliptical top-loading

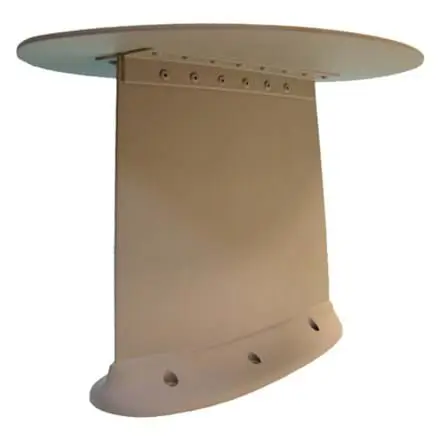

Click to enlarge

Specification

30 Minimum Frequency
450 Maximum Frequency
<2.5:1 Return Loss VSWR
30: -23 dBi min; Gain
Vertical Polarization
Omnidirectional Radiation Pattern Azimuth
Consinusoidal Radiation Pattern Elevation
50 Average Power Watts
328 x 270 x 229 Full Dimensions LxWxH mm
2.04 Mass kg
TNC Female Connector Type
55 Continuous Operating Temperature Min - C
55 Continuous Operating Temperature Max C
DO-160 Standards
