ELT Dipole Antenna – 18-44A

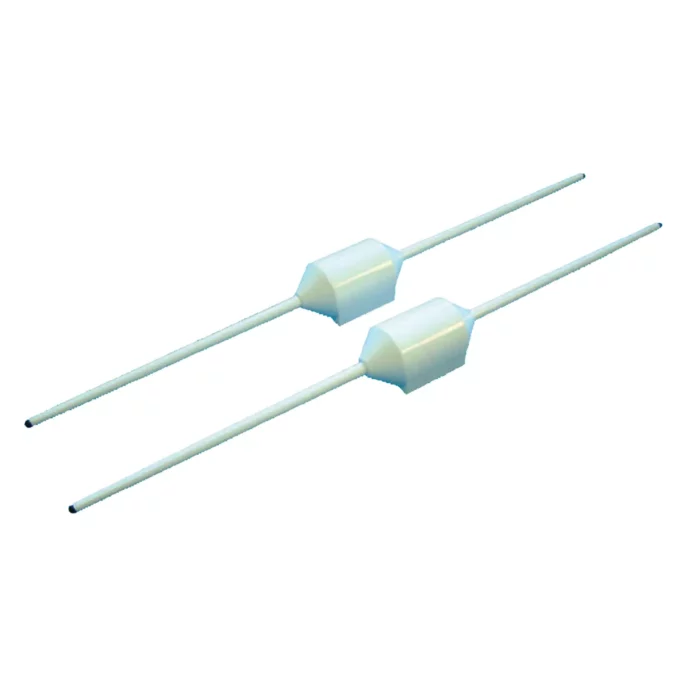

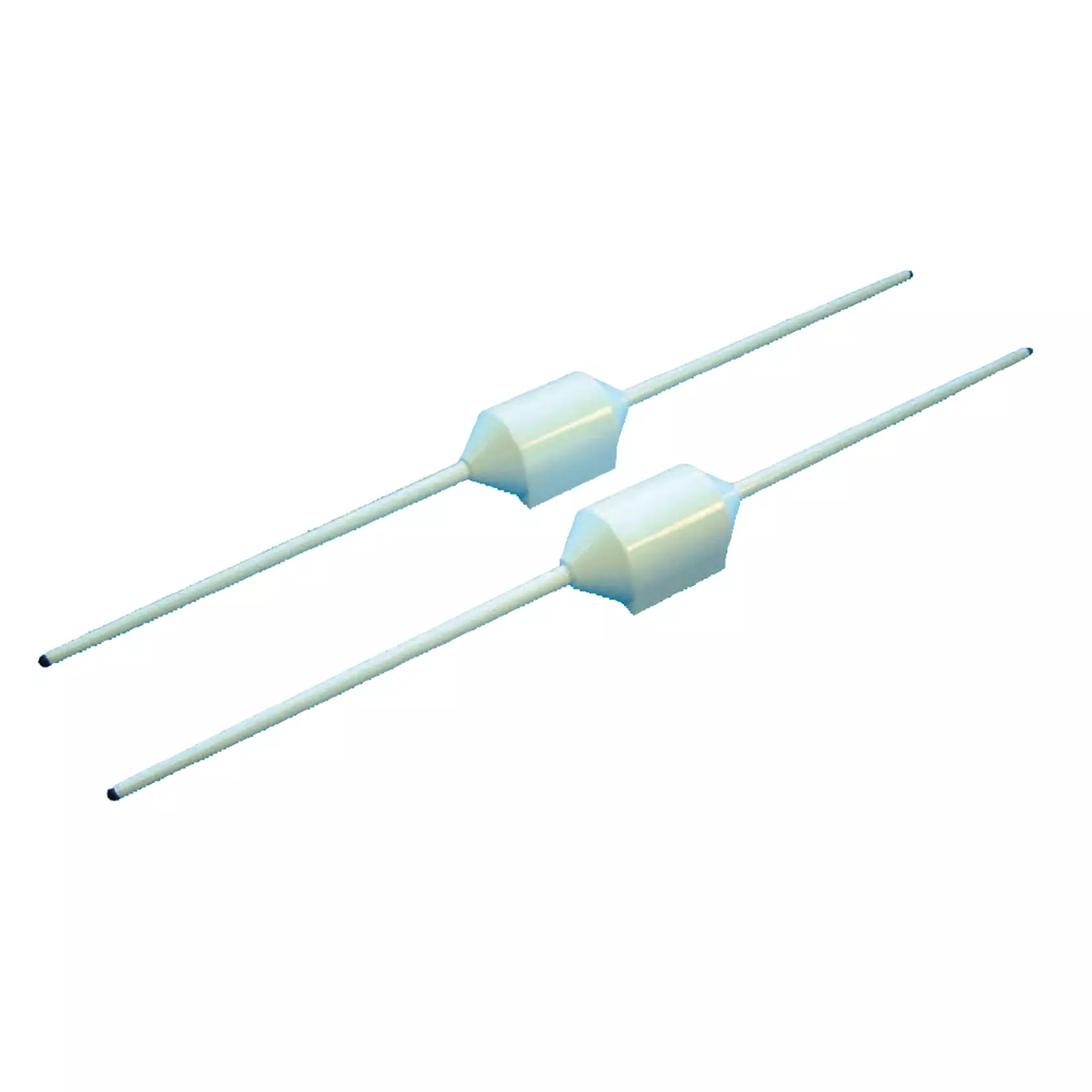

The 18-44 is a phase matched ELT (Emergency Location Transmitter) dipole antenna system designed specifically for homing applications. The whip elements are designed to be replaceable and are supplied as a pair.

  • ✔ Multi-Band
  • ✔ Tufnol dipole centre
  • ✔ Tufnol dipole centre
  • ✔ GRP covered aluminium alloy
  • ✔ Lightweight
  • ✔ Covers 121.5, 156.8 and 243MHz
  • ✔ Aerodynamic
  • ✔ Rugged
Click to enlarge

Specification

121 Minimum Frequency
243 Maximum Frequency
50 Impedence
≤ 5.0:1 Return Loss VSWR
Vertical Polarization
Omnidirectional Radiation Pattern Azimuth
Cosinusoidal Radiation Pattern Elevation
Receive only Peak Power Watts
Receive only Average Power Watts
560 x 45 x 52 Full Dimensions LxWxH mm
0.3 Mass kg
BNC Type Female Connector Type
See datasheet Altitude ft
See datasheet Continuous Operating Temperature Min - C
See datasheet Continuous Operating Temperature Max C
RRTCA DO -160C, Section 8, Category Y Vibration
