Flexible Conformal ILS/VOR Antenna – 27-6000

Flexible Conformal ILS/VOR Antenna – 27-6000

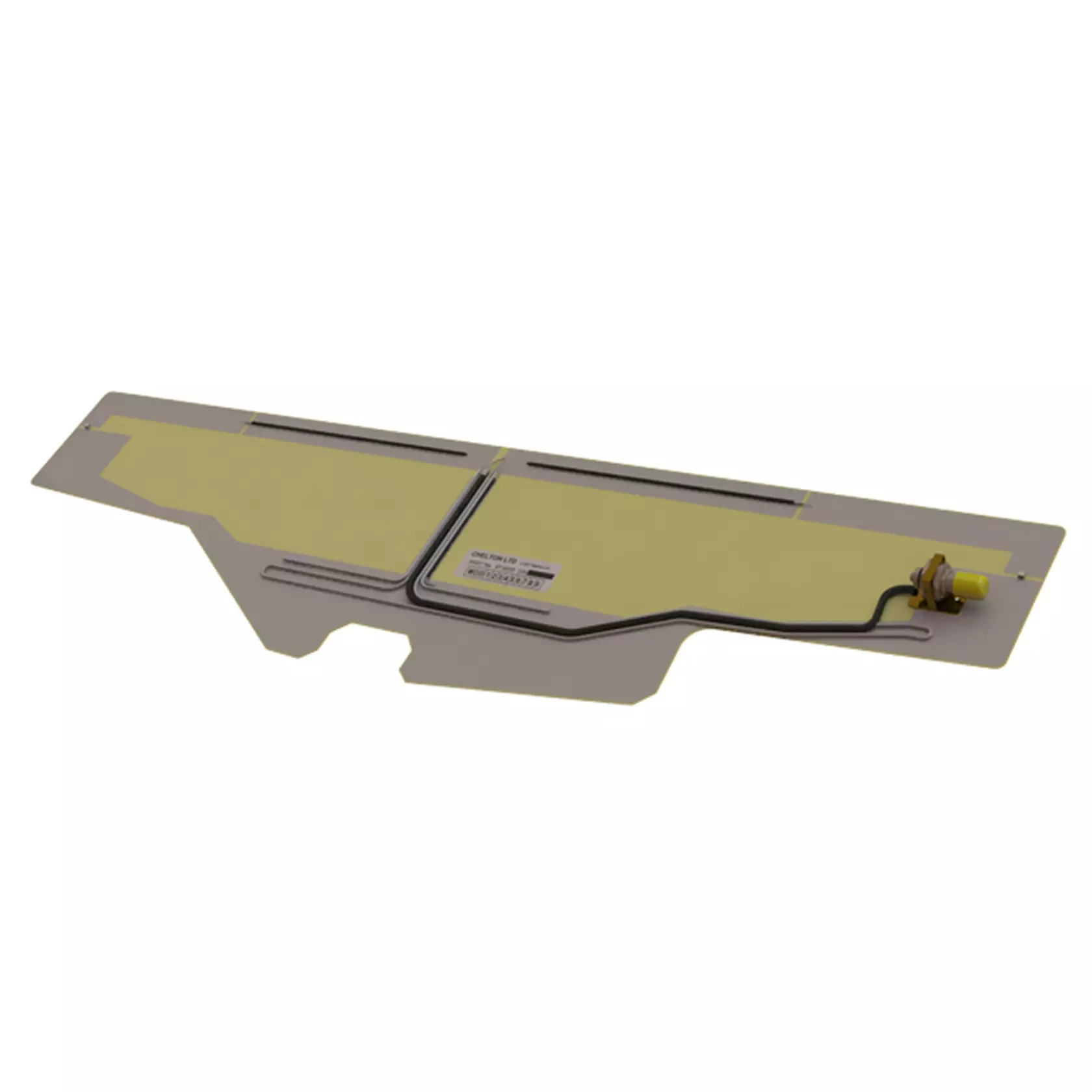

Type 27-6000 is a flexible conformal ILS/VOR antenna that can be applied to the inner surface of the nose radome. It provides the Localizer and glideslope functions.

  • ✔ Conformal
  • ✔ Lightweight
  • ✔ Reduced Drag
Click to enlarge

Specification

108 Minimum Frequency
336 Maximum Frequency
50 Impedence
108 - 118 MHz: <9:1; Return Loss VSWR
108 - 118 MHz: -12 dBi Gain
Horizontal Polarization
Directional Radiation Pattern Azimuth
1 Average Power Watts
638 x 163.6 x 0.5 Full Dimensions LxWxH mm
0.18 Mass kg
TNC Type Female Connector Type
40 Continuous Operating Temperature Min - C
71 Continuous Operating Temperature Max C
DO-160 Standards
