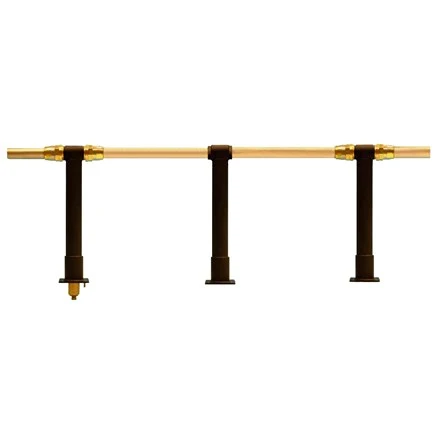

HF Towel Rail Antenna Array 455 Series
HF Towel Rail Antenna Array 455 Series
Chelton’s series of HF (High Frequency) antenna arrays are designed primarily to enable towel rail transmit/receive HF antennas to be installed on fixed and rotary wing aircraft in such a way as to optimise efficiency within the constraints of minimal drag, weight and size.
- ✔ Low resistance connection
- ✔ Low capacitance
Specification
2
Minimum Frequency
30
Maximum Frequency
Various
Connector Type
35000
Altitude ft
55
Continuous Operating Temperature Min - C
70
Continuous Operating Temperature Max C
RTCA DO-160C, Sect 8, Curves L, Y and V MIL-STD-810E, Meth 514.4, Cat 6, Fig. 514.4-9
Vibration
