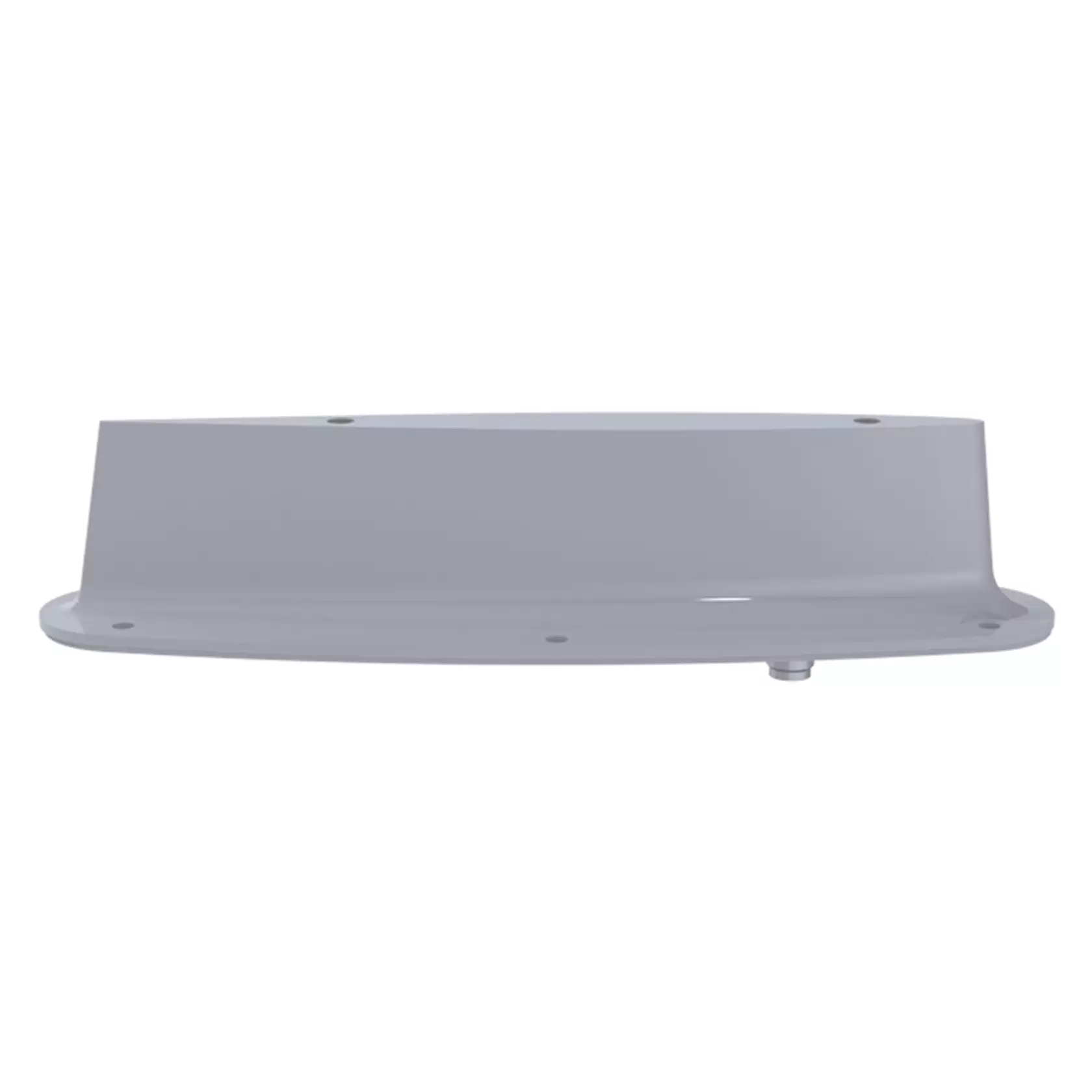

ILS Marker Antenna – 17-9T

ILS Marker Antenna – 17-9T

The 17-9 range of antennas is intended for use with airborne ILS marker beacon receivers. The 17-9B and T variants are available with a stainless leading edge strip (17-9B/T RF) for supersonic use. The 17-9 antennas are configured as capacitively tuned loops.

  • ✔ supersonic
  • ✔ TNC connector
  • ✔ BNC and C type also available
  • ✔Lightning protection

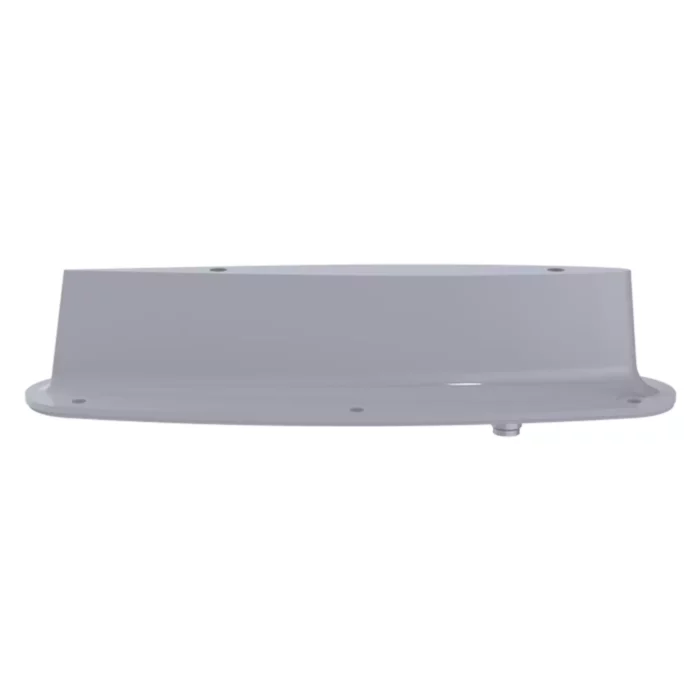

Click to enlarge

Specification

74.99 Minimum Frequency
75.01 Maximum Frequency
50 Impedence
3.0:1 max. Return Loss VSWR
Horizontal Polarization
230 x 65 x 49 Full Dimensions LxWxH mm
0.25 Mass kg
17-9B Type BNC female Connector Type
55000 Altitude ft
55 Continuous Operating Temperature Min - C
70 Continuous Operating Temperature Max C
BS3G100, Part 2, Section 3.3.1, Vibration
DO-160C, Section 23, Cat X. Lightning
