ILS Marker Antenna – 17-9TEF-1

ILS Marker Antenna – 17-9TEF-1

The 17-9TEF-1 antenna is intended for use with airborne ILS marker receivers. The 17-9TEF-1 antenna is configured as a capacitively tuned loop.

  • ✔Capacitively tuned loop
  • ✔ILS marker receive

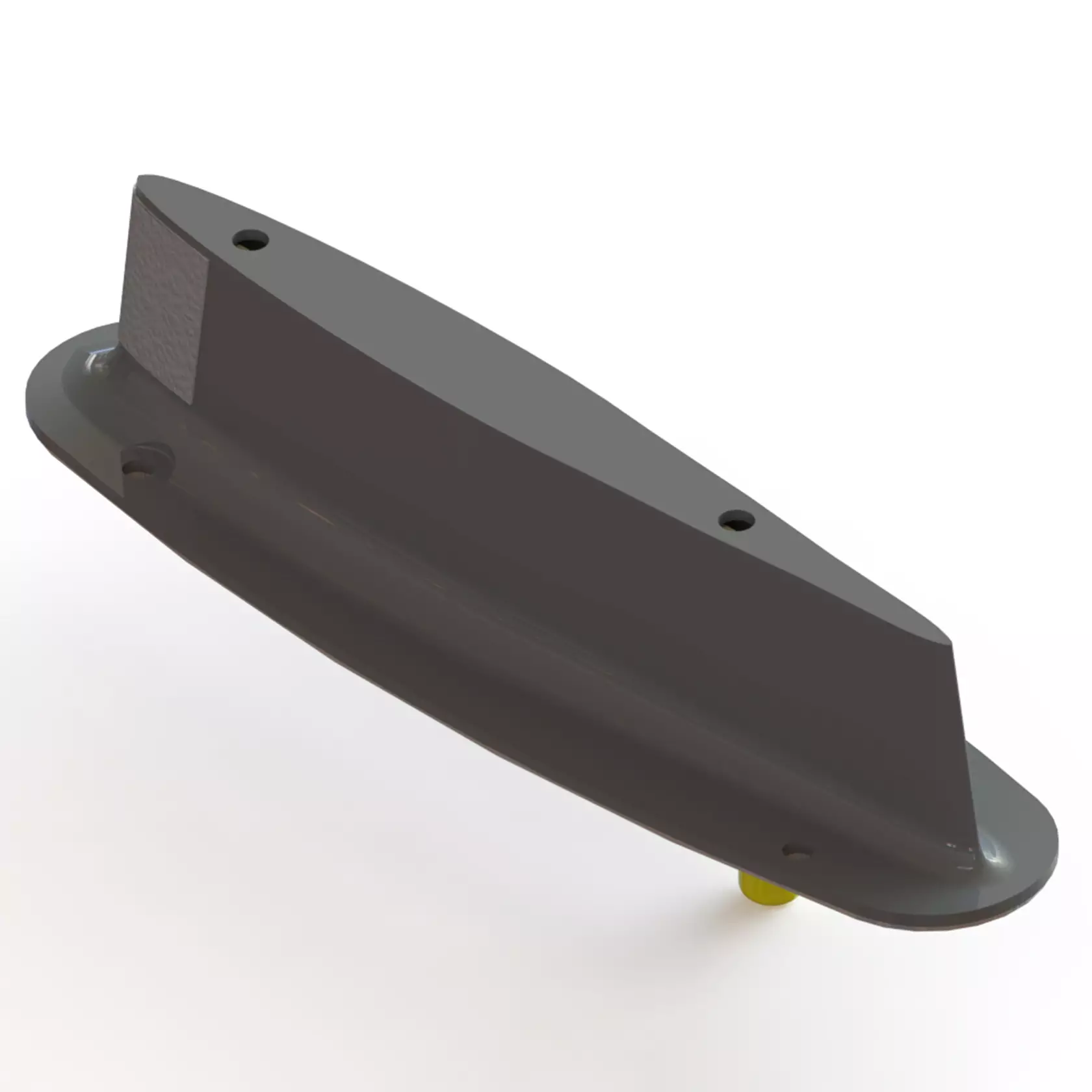

Click to enlarge

Specification

75 Minimum Frequency
75 Maximum Frequency
50 Impedence
75 + 0.2 MHz < 3.0:1 Return Loss VSWR
75 MHz > -10 dBi Gain
Horizontal Polarization
0.26 Mass kg
TNC Female Connector Type
55000 Altitude ft
54 Continuous Operating Temperature Min - C
70 Continuous Operating Temperature Max C
