L-band Antenna for IFF transponder – 10A14-2

10A14-2 Datasheet

L-band Antenna for IFF transponder – 10A14-2

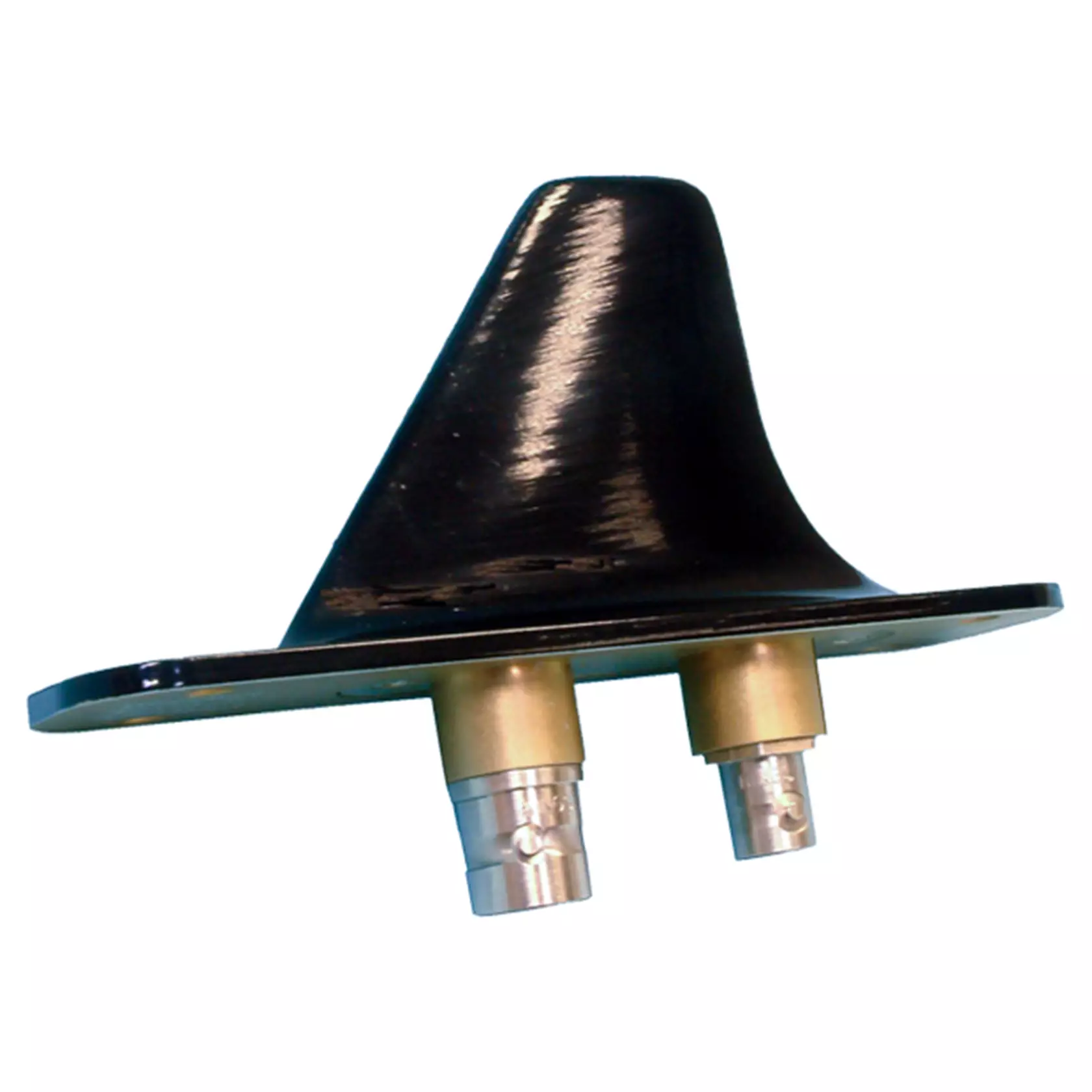

The 10A14-2 is a blade antenna covering the IFF frequency bands and designed for high speed airborne applications. The antenna includes a test port.

  • ✔ With test port
  • ✔ C type connector
  • ✔4 hole base
Click to enlarge

Specification

1020 Minimum Frequency
1100 Maximum Frequency
50 Impedence
1.5:1 (max) Return Loss VSWR
≤-6 dB wrt ≤/4 monopole Gain
Vertical Polarization
Omnidirectional Radiation Pattern Azimuth
4000 Peak Power Watts
50 Average Power Watts
125 x 33 x 59 Full Dimensions LxWxH mm
59 Height Above Base Plate mm
0.12 Mass kg
Type C female (antenna) Connector Type
55000 Altitude ft
33 Continuous Operating Temperature Min - C
70 Continuous Operating Temperature Max C
MIL-STD-810B Method 514.3 Procedure I Vibration
MIL-STD-810 Standards
10A14-2 Datasheet
