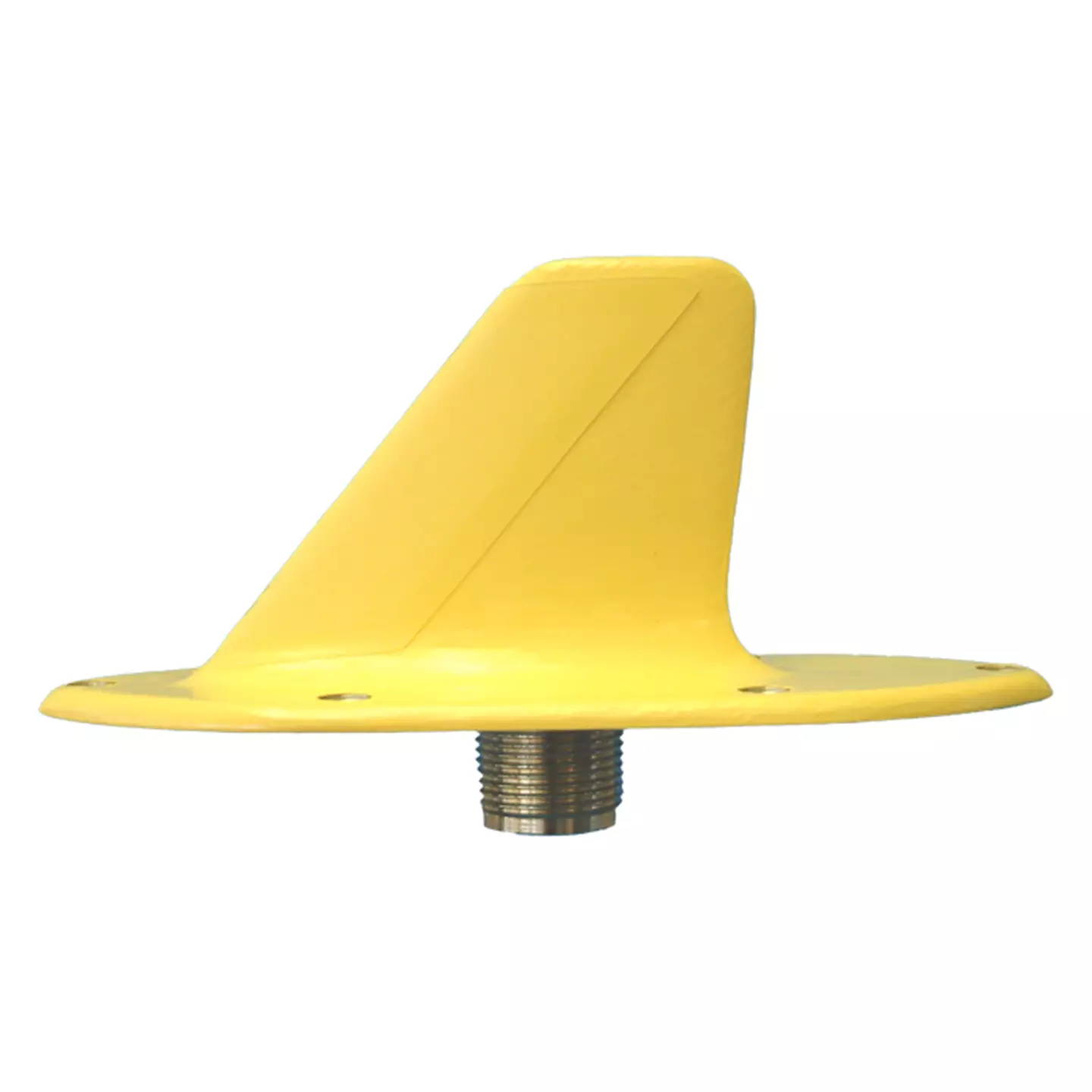

L-band Blade – 10A1

L-band Blade – 10A1

The 10A1 series of L-band antennas are for airborne transmission/reception over the nominal design band 950MHz to >1200MHz, with most variations being due to footprint shape. The 10A1 antennas have no test probe and a HN female connector.

  • ✔ Single port
  • ✔ HN connector
  • ✔ 6 holes
  • ✔ w/wo SS or PU leading edge
Click to enlarge

Specification

950 Minimum Frequency
1220 Maximum Frequency
50 Impedence
<1.7:1 over 950-1220MHz, Return Loss VSWR
>-3dB relative to resonant monopole Gain
Vertical Polarization
Omnidirectional Radiation Pattern Azimuth
133 x 46 x 57 Full Dimensions LxWxH mm
57 Height Above Base Plate mm
0.11 Mass kg
HN Connector Type
50000 Altitude ft
54 Continuous Operating Temperature Min - C
135 Continuous Operating Temperature Max C
BS 3G100 Pt 2 Sect 3:3.1 Region A. Cat 5. Vibration
DO-160 Standards
