L-band Blade – 10A2

10A2 Datasheet

L-band Blade – 10A2

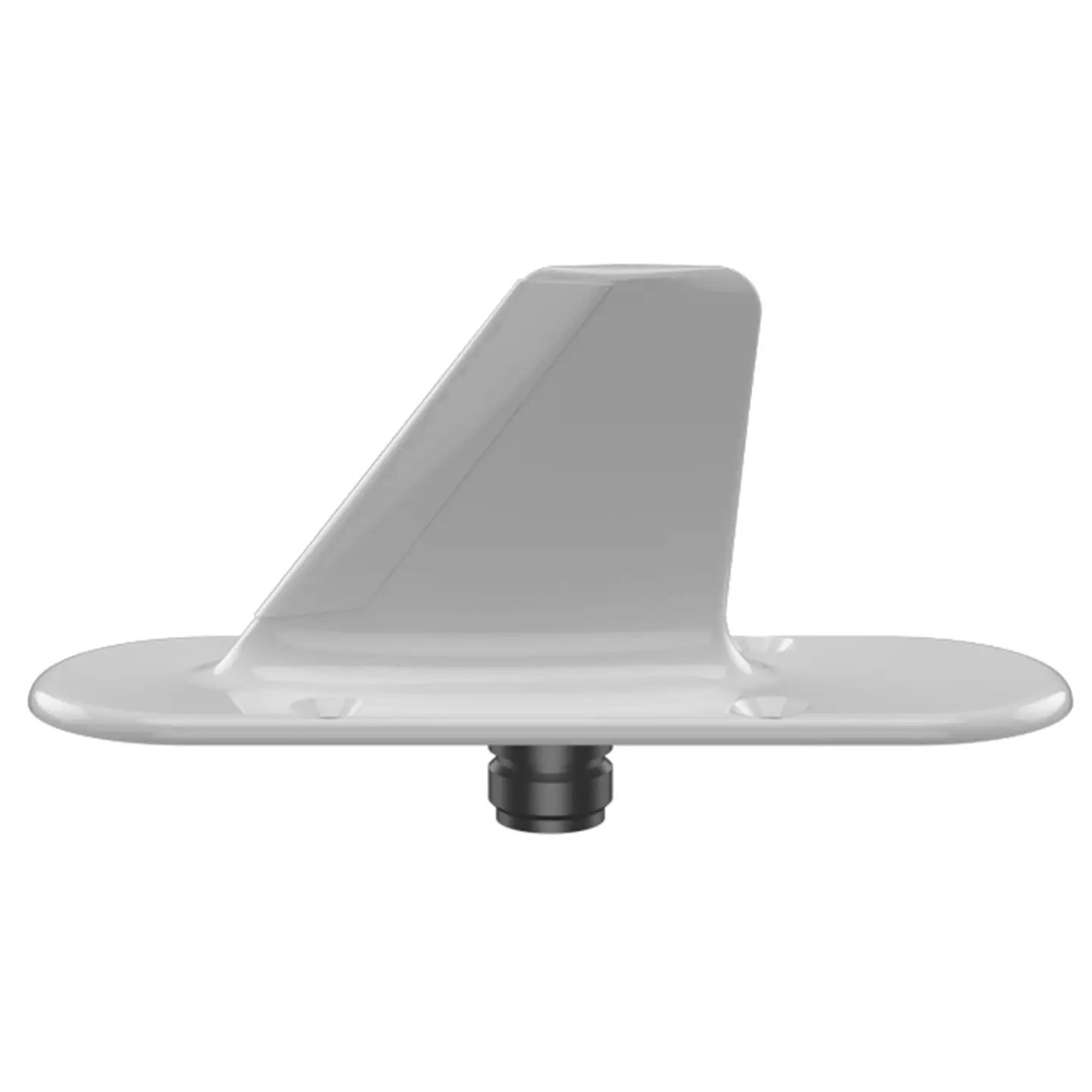

The 10A2 series started as a general-purpose rugged L-band antenna. As with other L-band antenna families the main differences are footprint and connector types. The 10A2 series has no test port and an N female connector. -1 is SS leading edge, -2 is with PU leading edge.

  • ✔Single port
  • ✔ N type
  • ✔4 mounting holes
  • ✔w/wo PU leading edge
  • ✔Lightning protection
Click to enlarge

Specification

960 Minimum Frequency
1220 Maximum Frequency
50 Impedence
960-1220 < 1.7:1 Return Loss VSWR
> 0dBi Gain
Vertical Polarization
Omnidirectional Radiation Pattern Azimuth
135 x 46 x 57 mm Dimensions (LxWxH)
57 mm Height Above Base
0.11 kg Mass
Type N female Connector
- 55°C Min Continuous Operating Temperature Min
+ 70°C Max Continuous Operating Temperature Max
50000 ft Altitude
NT-A4-SAM-04017, Para 2.2.8.1 <br> MIL-STD-810E, Method 514.5, Proc I, Cat 13 Vibration
Air Suitable for Platform
