L-Band Blade – 10A21

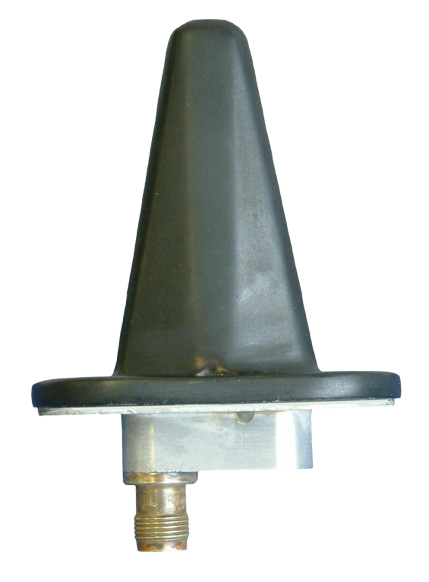

Type 10A21 is a low profile and rugged L-Band antenna, designed for airborne applications, covering the frequency range 960 to 1215 MHz.

  • ✔Single port
  • ✔ TNC Connector
  • ✔4 holes
  • ✔Low Profile
  • ✔Low Drag
Click to enlarge

Specification

960 Minimum Frequency
1215 Maximum Frequency
960 - 1000 <1.8:1; Return Loss VSWR
≥ 3 dB relative to a resonant quarter wave monopole when measured on a 2m diameter ground plane Gain
Vertical Polarization
Omnidirectional Radiation Pattern Azimuth
72.4 x 40.6 x 77.5 mm Dimensions (LxWxH)
77.5 mm Height Above Base
0.085 kg max Mass
TNC Female Connector
- 40°C Min Continuous Operating Temperature Min
+ 70°C Max Continuous Operating Temperature Max
35000 ft Altitude
BS 3G 100 Pt. 2. Sect 3.3.1, Region A, Cat 5 Vibration
Air Suitable for Platform
