L-Band Blade – 10A29-5

10A29-5 Datasheet

L-Band Blade – 10A29-5

The 10A29-5 antenna is an L-band blade designed for use over the frequency range 960-1220MHz in airborne applications. It is similar to the 10A29-4 with a modified footprint and a test port.

  • ✔With test port
  • ✔N connector
  • ✔6 holes

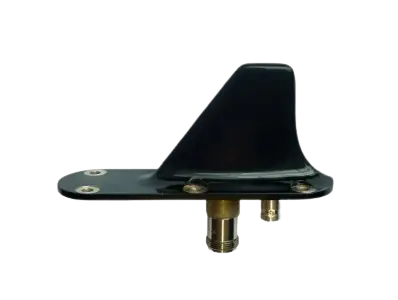

Click to enlarge

Specification

960-1220 Frequency Range (MHz
50 Ω Impedance
1.5:1 VSWR
-3 dB wrt matched monopole Gain
Essentially vertical (when mounted vertically) Polarisation
Azimuth: omnidirectional Elevation: Essentially cosinusoidal Radiation
1.5 kW (peak) 15 W cw (max) Power Handling
128 x 40 x 58 (mm) Dimensions (LxWxH)
58 mm Height Above Base
0.135 kg Mass
RF Probe: N female Test Probe: BNC female Connector
MIL-STD-810B Environmental
54°C Min Continuous Operatin Temperature Min
+ 70, 153 (2 minutes)°C Max Continuous Operatin Temperature Max
50000 ft Altitude
MIL-STD-810B Method 514 Proc 1 (Fig 514-2 Curve H) Vibration
