L-band Blade – 10A5-1

Type 10A5 is a low profile and rugged L-Band antenna, designed for airborne applications, covering the frequency range 950 to 1220 MHz. There are variations within the type for footprint The series has a C-type female connector and no test port. -3 has PU leading edge.

  • โœ”Single Port
  • โœ”C type connector
  • โœ”Available with PU leading edge

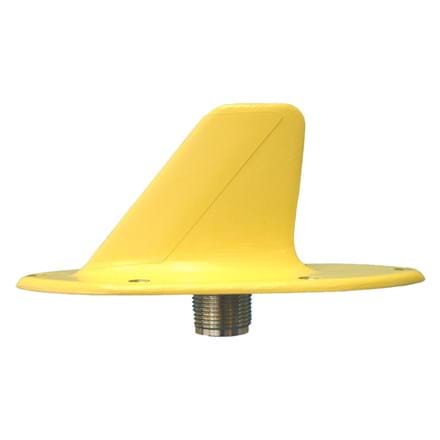

L-band Blade - 10A5-1 - Image 1
Click to enlarge

Specification

950-1220 MHz Frequency
1.1 kW peak Power Handling
50 ฮฉ Impedance
950 - 1220 MHz < 1.7:1 VSWR
950 - 1220 MHz > -3dBi Gain
Vertical Polarisation
128 x 46 x 57 mm Dimensions (LxWxH)
0.11 kg Weight
C type connector Connector
- 55ยฐC Min Continuous Operating Temperature Min
+ 70ยฐC Max Continuous Operating Temperature Max
50,000 ft Altitude
DO-160 Standards
RTCA-DO 160D, Section 8, Cat C, Curve M Vibration
10A5-1 Datasheet
