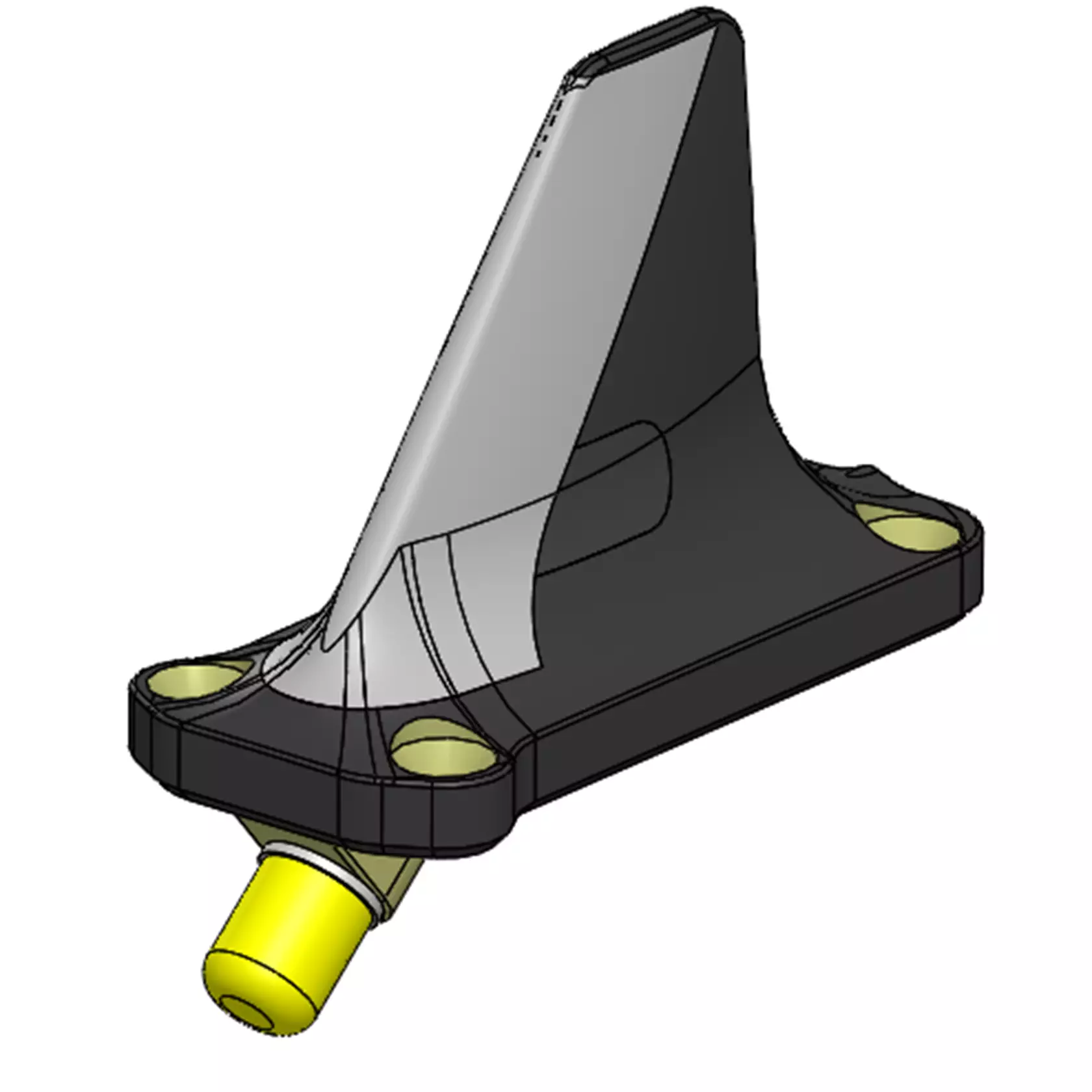

The 10A14-3 is a blade antenna covering the IFF frequency bands and designed for high speed airborne applications. It has a single connector. (no test port).

  • ✔ Single port
  • ✔ C type connector
  • ✔ 4 hole base
Click to enlarge

Specification

1020 Minimum Frequency
1100 Maximum Frequency
50 Impedence
1.5:1 (max) Return Loss VSWR
≤-6 dB wrt ≤/4 monopole Gain
Vertical Polarization
Omnidirectional Radiation Pattern Azimuth
4000 Peak Power Watts
50 Average Power Watts
89 x 35 x 63 Full Dimensions LxWxH mm
63 Height Above Base Plate mm
0.16 Mass kg
Type C female (antenna) Connector Type
55000 Altitude ft
33 Continuous Operating Temperature Min - C
71 Continuous Operating Temperature Max C
MIL-STD-810F Method 514.3 Procedure 1 Vibration
MIL-STD-810 Standards
