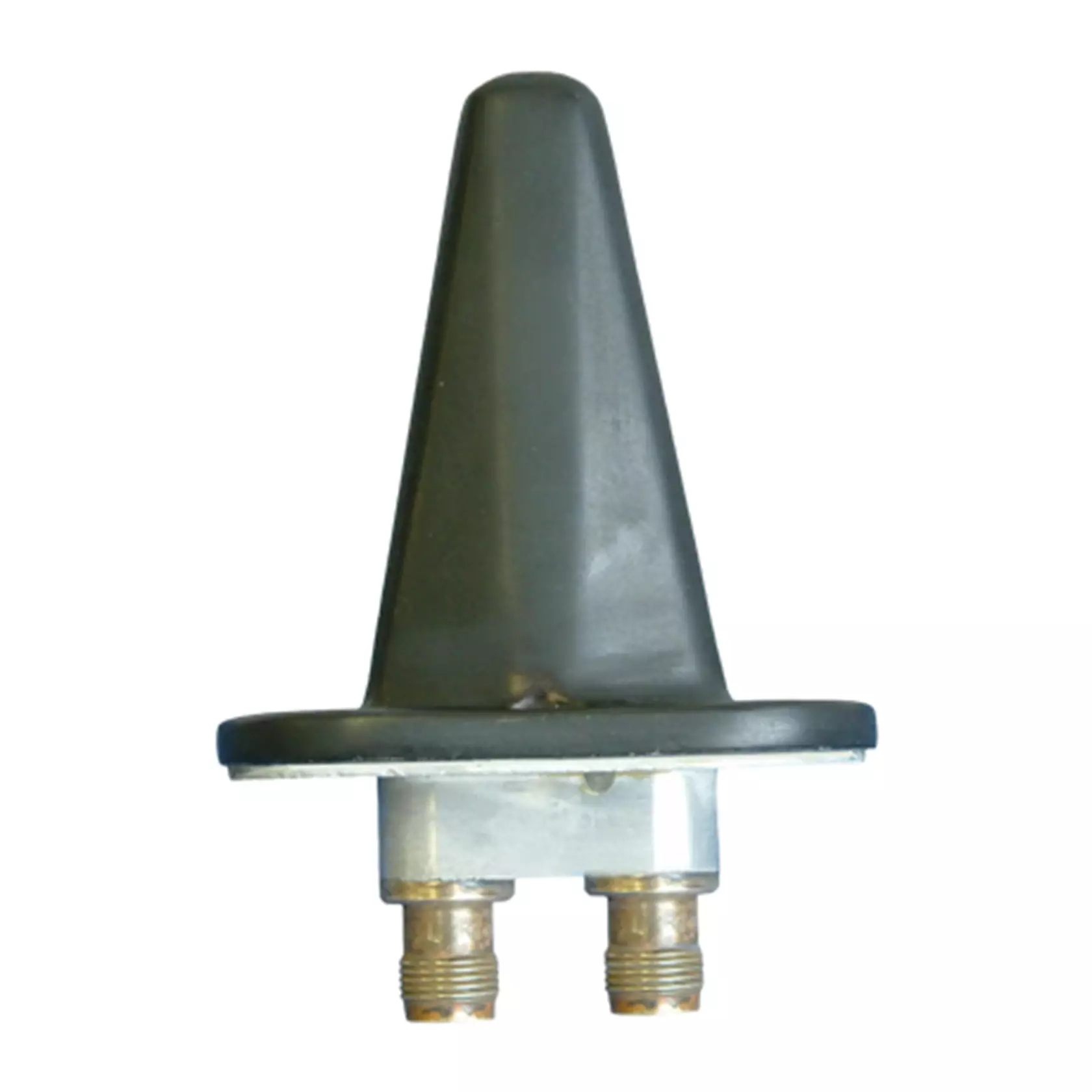

L-Band IFF Blade – 10A19

10A19 Datasheet

L-Band IFF Blade – 10A19

  • ✔ With Test Probe
  • ✔ TNC type connector
  • ✔ Rugged
  • ✔ Good match
  • ✔ Low Drag

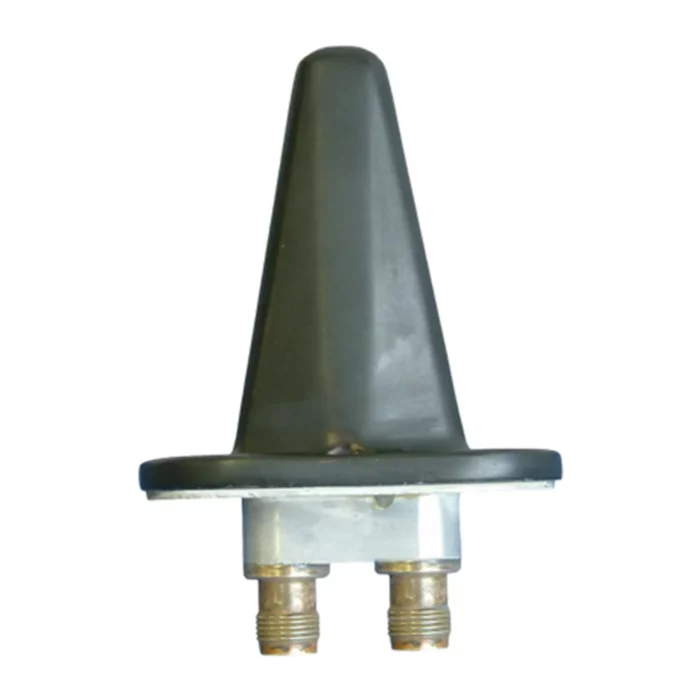

Click to enlarge

Specification

1020 Minimum Frequency
1100 Maximum Frequency
50 Impedence
<1.2: 1 Return Loss VSWR
> -1 dB relative to a resonant quarter wave monopole Gain
Vertical Polarization
Omnidirectional Radiation Pattern Azimuth
1500 Peak Power Watts
15 Average Power Watts
72 x 41 x 79 Full Dimensions LxWxH mm
79 Height Above Base Plate mm
0.09 Mass kg
TNC Female, BNC Probe Connector Type
40 Continuous Operating Temperature Min - C
70 Continuous Operating Temperature Max C
BS 3G 100 Pt. 2. Sect 3.3.1, Region A, Cat 5 Vibration
DO-160 Standards
