L1 & L2 Low Profile GPS Antenna with PTFE cover – 20-27

20-27 and 20-27EC Datasheet

L1 & L2 Low Profile GPS Antenna with PTFE cover – 20-27

The 20-27 and 20-27EC Series GPS antennas are designed to provide operation at both the L1 and L2 frequencies. They are of low profile construction and are supplied with a high performance PTFE (Teflon) cover. The antennas are designed for use on greater than 300 mm diameter metallic groundplanes. For all other groundplanes use type 20-27F Series.

  • ✔ L1 and L2 coverage
  • ✔ Low profile
  • ✔ High performance PTFE (Teflon) cover

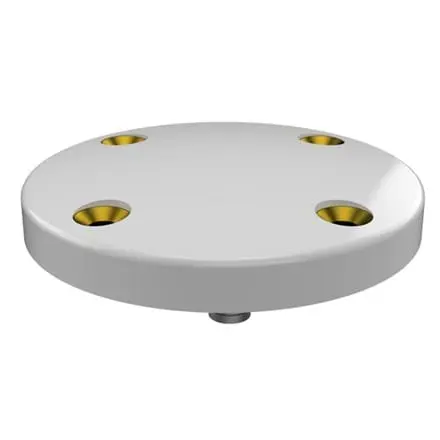

Click to enlarge

Specification

1217 Minimum Frequency
1585 Maximum Frequency
50 Impedence
<1.8:1 Return Loss VSWR
+7 dBiC in zenith, see DDP for full table range Gain
RHCP Polarization
88.9 x 88.9 x 16.51 Full Dimensions LxWxH mm
0.25 Mass kg
TNC Type Female Connector Type
55 Continuous Operating Temperature Min - C
100 Continuous Operating Temperature Max C
DO-160 Standards
20-27 and 20-27EC Datasheet
