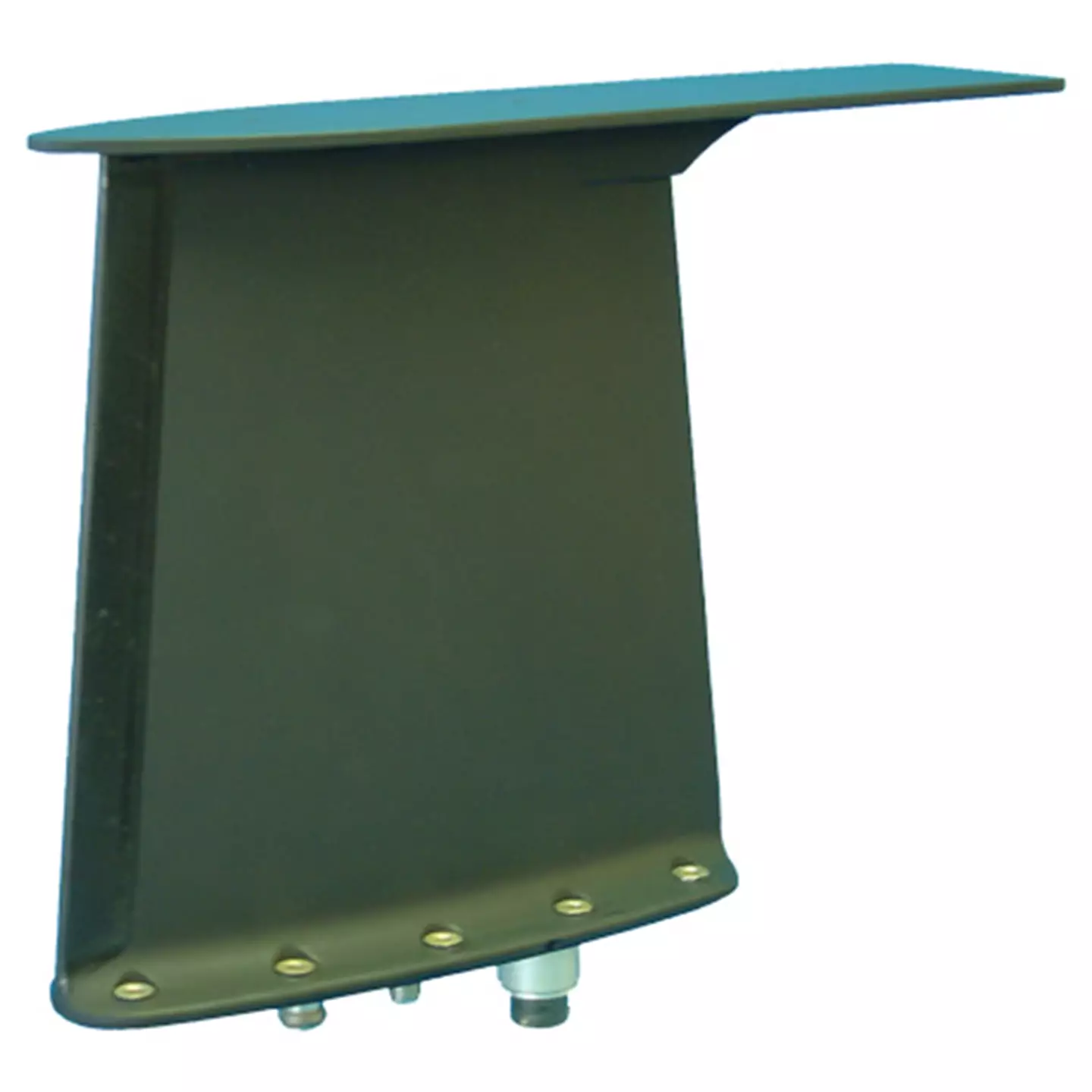

Low Profile Multiband Blade Antenna – 12-190-310

The 12-190-310 is a multiband, low profile, blade antenna designed for operation in the frequency bands 30-88, 108-174, 225-530 and 960-1220 MHz. Suitable for the ARC 210 radio.

✔ Suitable for ARC 210 Radio
✔ Low Profile
Click to enlarge

Specification

30 Minimum Frequency
1220 Maximum Frequency
50 Impedence
30-88 MHz < 2.5:1 Return Loss VSWR
30 MHz > -13 dBi rising to Gain
Vertical Polarization
Omnidirectional Radiation Pattern Azimuth
1.82 Mass kg
N Female - L Band Connector Type
50000 Altitude ft
54 Continuous Operating Temperature Min - C
55 Continuous Operating Temperature Max C
