Low Profile Tuneable Blade Antenna – 12-225

The 12-225 is a low profile (5.25 inches) tuneable antenna providing operation over 30-88MHz, 108-174MHz and 224-400MHz.

  • ✔ Multiband Tuneable
  • ✔ Low profile (5.25 inches high)
  • ✔ Gain at 30MHz ≤ -15dBi
  • ✔ Lightning protection

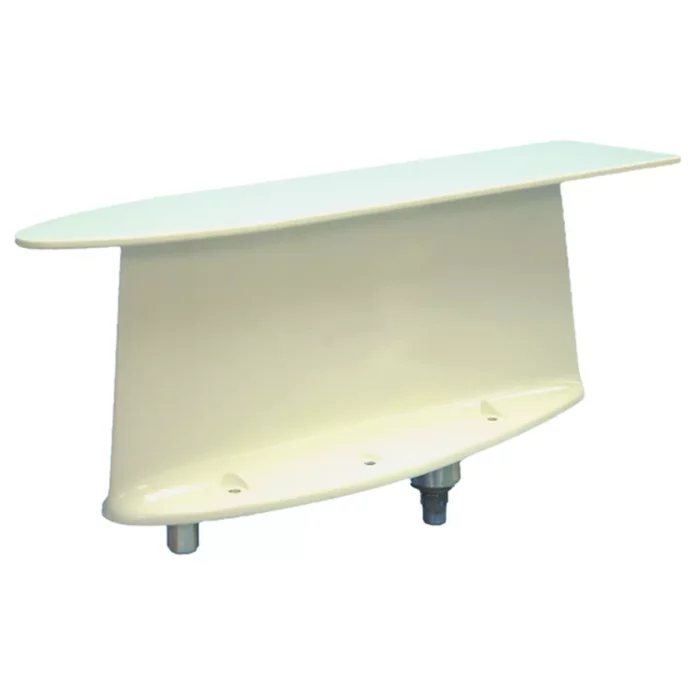

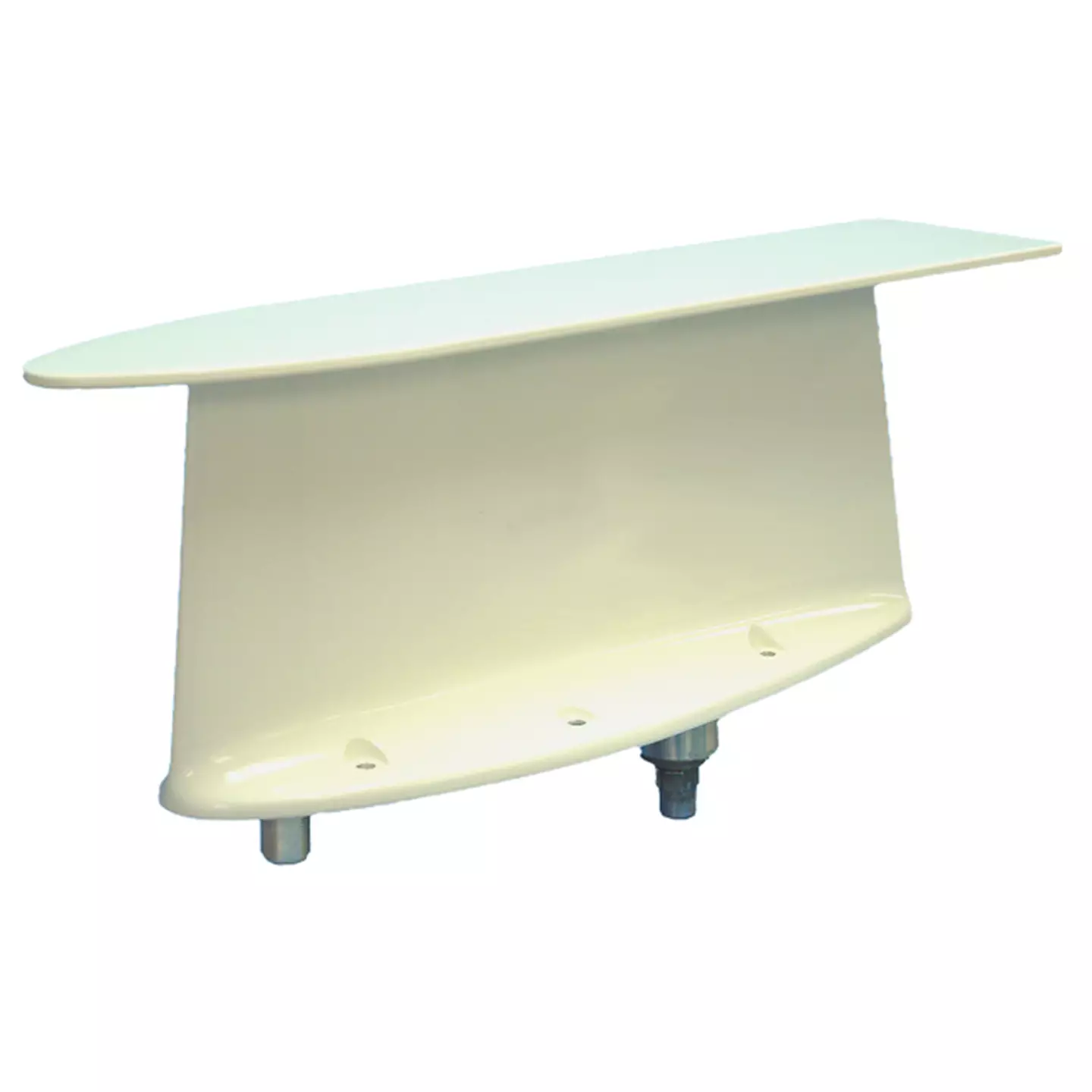

Click to enlarge

Specification

30 Minimum Frequency
400 Maximum Frequency
50 Impedence
2.5:1 max Return Loss VSWR
30 to 88 MHz: -15 dBi to -7.5 dBi Gain
Vertical Polarization
Omnidirectional Radiation Pattern Azimuth
23 Peak Power Watts
23 Average Power Watts
361 x 91 x 133 Full Dimensions LxWxH mm
1.59 Mass kg
TNC Female Connector Type
70000 Altitude ft
54 Continuous Operating Temperature Min - C
71 Continuous Operating Temperature Max C
MIL-STD-810B Method 514.3 Procedure I (modified) Vibration
901-370-202 Para 3.6.2.1 Lightning
