Low Profile Tuneable V/UHF Blade Antenna – 12-190-160

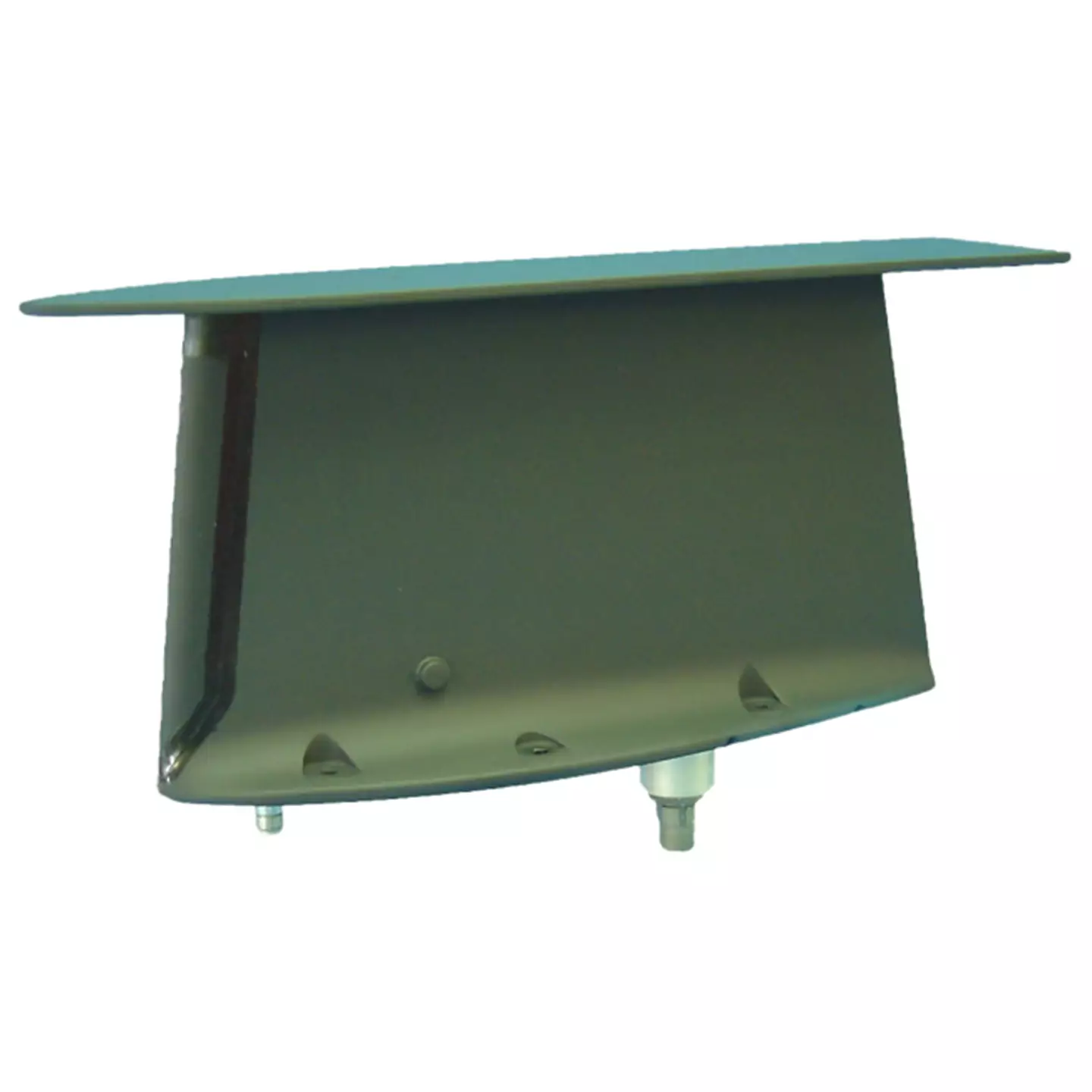

The 12-190-160 is a low profile, top-loaded tuneable, V/UHF blade antenna designed to provide communications in the frequency band 30-512 MHz. It is intended for use in general, rotary wing applications.

  • ✔Low Profile (6.5 inches)
  • ✔ Gain of -15dBi at 30MHz
  • ✔ Ideal for low-clearance applications
Click to enlarge

Specification

30 Minimum Frequency
512 Maximum Frequency
50 Impedence
<2.5:1 Return Loss VSWR
30 MHz > -15dBi Gain
Vertical Polarization
25 Peak Power Watts
25 Average Power Watts
361 x 91 x 165 Full Dimensions LxWxH mm
1.6 Mass kg
RF: TNC Female Connector Type
30000 Altitude ft
54 Continuous Operating Temperature Min - C
55 Continuous Operating Temperature Max C
MIL-STD-810E, Method 513.4, Proc I, Cat 10 Vibration
12-190-160 Datasheet
