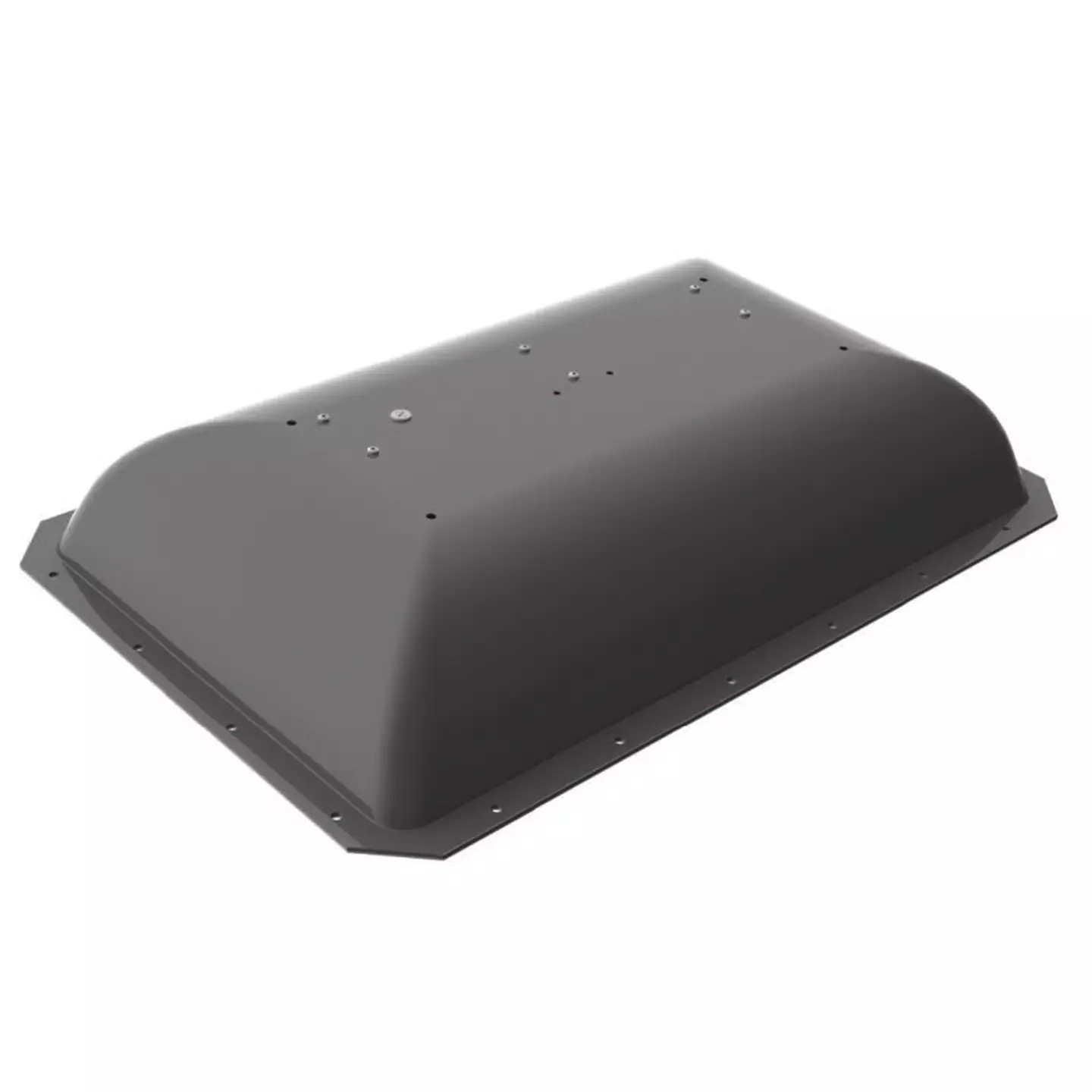

The 17-225 is a low profile, VHF/UHF tunable antenna that operates in the frequency bands 30 MHz to 88 MHz, 118 MHz to 174 MHz and 225 MHz to 512 MHz. It is designed for use in rotary wing applications.

✔Designed for rotary wing
✔ Broadband
Click to enlarge

Specification

30 Minimum Frequency
512 Minimum Frequency
50 Impedence
< 2.5:1 over all frequency bands Return Loss VSWR
≤ -18 dBi 30 MHz Gain
Vertical Polarization
Omnidirectional Radiation Pattern Azimuth
25 Average Power Watts
92.5 x 540 x 340 Full Dimensions LxWxH mm
92.5 Height Above Base Plate mm
2 Mass kg
15000 Altitude ft
40 Continuous Operating Temperature Min - C
55 Continuous Operating Temperature Max C
MIL-STD-810E, Method 514.4, Procedure I, Category 6 Vibration
MIL-STD-810E Standards
17-225 Datasheet
