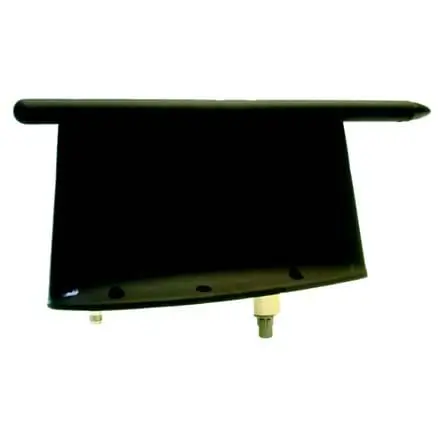

Low Profile VHF Antenna – 12-227

Type 12-227 is a high gain VHF antenna, of very low height, that provides for extremely efficient AM/FM communications (including secure speech frequency-hopping modes), while satisfying the twin requirements of low observability and low ground clearance as exists on a number of airborne platforms.

  • ✔Suitable for ARC-186
  • ✔ Very Low Height
  • ✔Extremely efficient AM/FM Communications including secure speech frequency hopping
  • ✔7 Hole Mounting
Click to enlarge

Specification

30 Minimum Frequency
152 Maximum Frequency
50 Impedence
≤ 2.5:1 all bands Return Loss VSWR
≤ -13 dBi @ 30 MHz Gain
Vertical Polarization
Omnidirectional Radiation Pattern Azimuth
As per stud Radiation Pattern Elevation
15 Average Power Watts
167 x 389 x 90.5 Full Dimensions LxWxH mm
167 Height Above Base Plate mm
1.35 Mass kg
RF: TNC Type Female DC:PT12-10P Connector Type
70000 Altitude ft
54 Continuous Operating Temperature Min - C
71 Continuous Operating Temperature Max C
MIL-STD-810D, Method 514.3, Procedure I modified Vibration
MIL-STD-810C Standards
