Low Profile VHF Blade Antenna – 21-38-2

21-38 Series Datasheet

Low Profile VHF Blade Antenna – 21-38-2

The 21-38 Series antennas are low profile blade antennas for general airborne application. The series covers a variety of frequency bandwidth requirements according to type. This variant covers the band from 118-153MHz

  • ✔Low Profile Passive
  • ✔Designed to meet TSO C37d and C38d

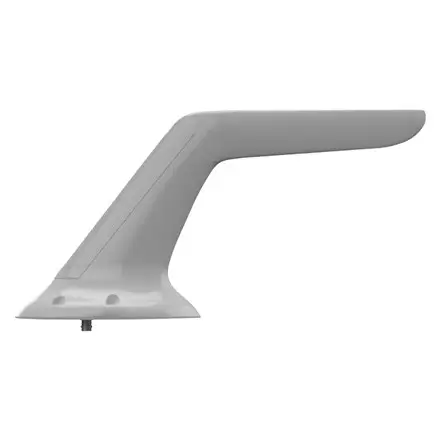

Click to enlarge

Specification

118 Minimum Frequency
153 Maximum Frequency
50 Impedence
2.5:1 Return Loss VSWR
-3 dBi min Gain
Vertical Polarization
Omnidirectional Radiation Pattern Azimuth
50 Average Power Watts
408 x 89 x 211 Full Dimensions LxWxH mm
211 Height Above Base Plate mm
0.8 Mass kg
BNC Female, TNC Female Connector Type
55000 Altitude ft
55 Continuous Operating Temperature Min - C
70 Continuous Operating Temperature Max C
RTCA DO-160C, Section 8, Categories C, J, L and M combined, Y Vibration
DO-160 Standards
