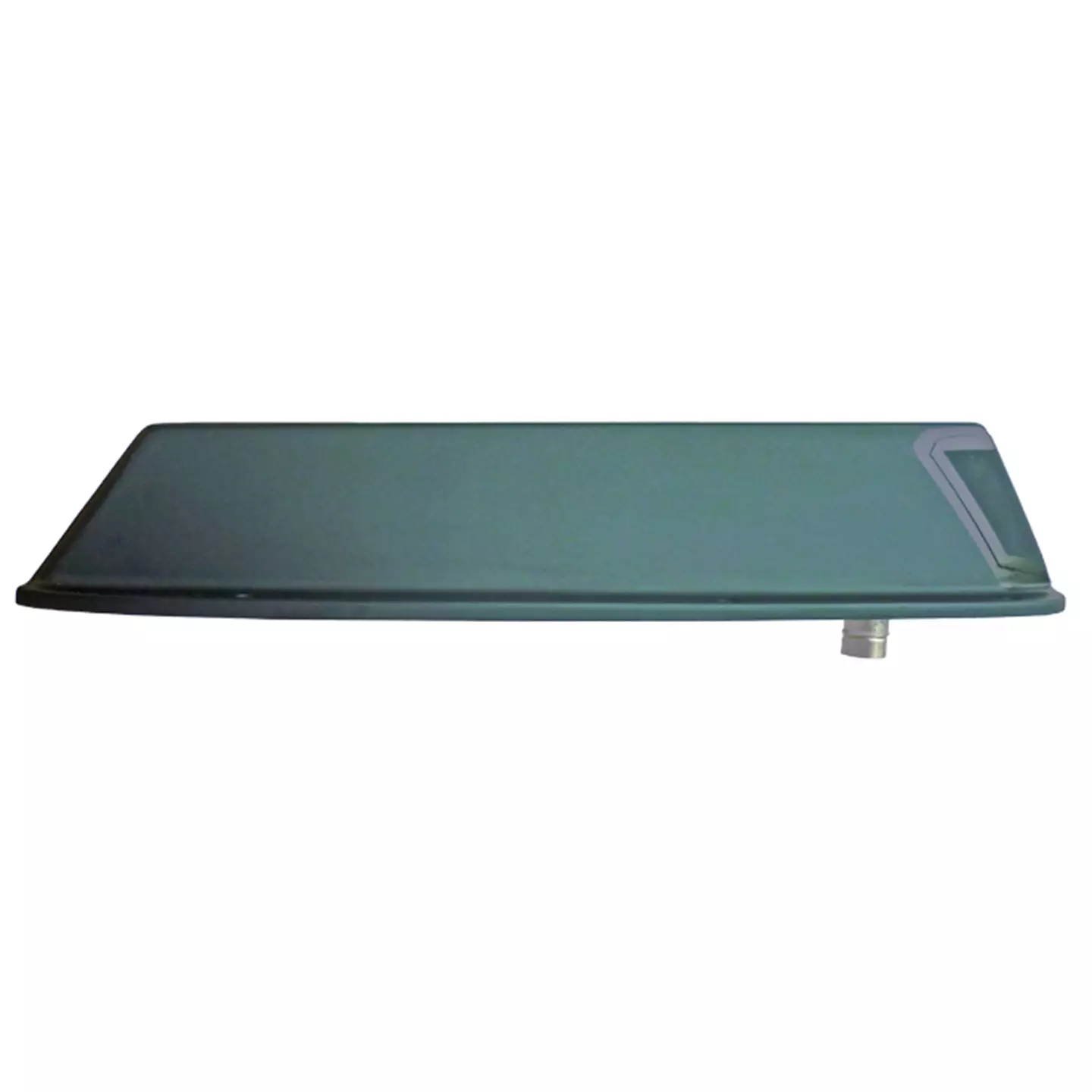

Marker Antenna - 17-11

Marker Antenna – 17-11

The 17-11 antenna is intended for use with airborne ILS marker receivers.

Specification

74.99 Minimum Frequency

75.01 Maximum Frequency

50 Impedence

3.0:1 max Return Loss VSWR

<16dB below dipole Gain

Horizontal Polarization

Main lobe below aircraft Radiation Pattern Azimuth

306 x 67 x 306 Full Dimensions LxWxH mm

0.4 Mass kg

C Female Connector Type

50000 Altitude ft

65 Continuous Operating Temperature Min - C

90 Continuous Operating Temperature Max C

BS 3G100. Pt. 2. Sect.3.3.1 Region A Cat. 4 Vibration

DO-160 Standards
