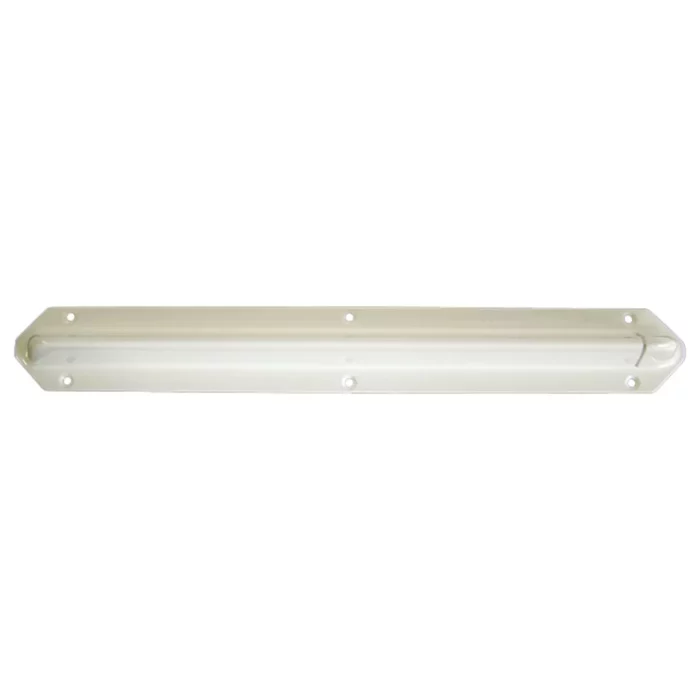

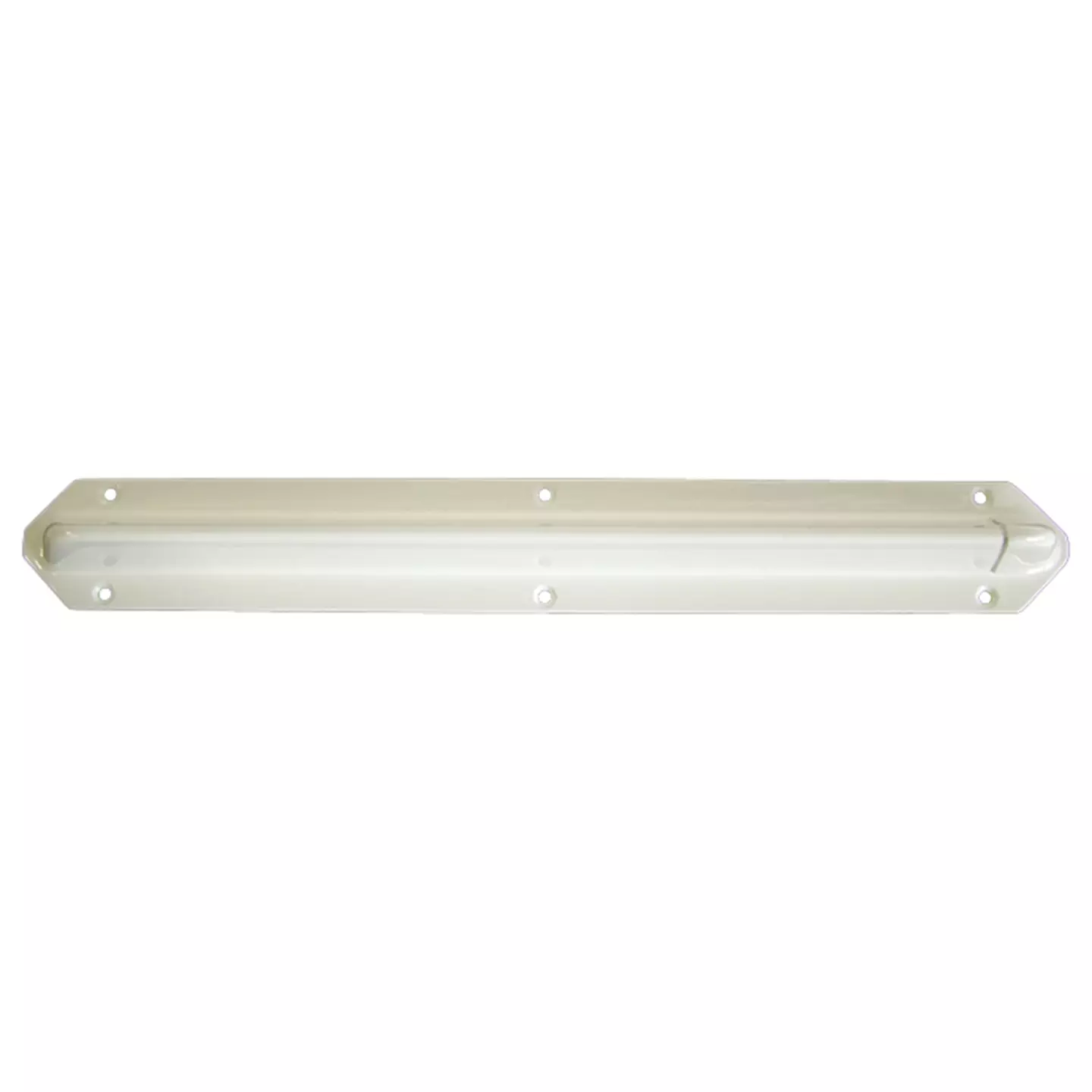

Marker Beacon Blade Antenna – 17-10

The 17-10 antenna is a 75 MHz Marker Beacon Antenna. The antenna is intended to meet the minimum performance standards specified in TSO-C35d and CAP 208.

  • ✔Very low profile (< 2inches)
Click to enlarge

Specification

74.8 Minimum Frequency
75.2 Maximum Frequency
50 Impedence
Mid Band <2:1; Return Loss VSWR
>-10 dBi Gain
Horizontal Polarization
Main lobe below aircraft Radiation Pattern Azimuth
382 x 49 x 34 Full Dimensions LxWxH mm
0.25 Mass kg
Numerous Connector Type
35000 Altitude ft
55 Continuous Operating Temperature Min - C
70 Continuous Operating Temperature Max C
RTCA DO-160C, Sect 8, Cat L Vibration
DO-160 Standards
