Marker Beacon Blade Antenna – 17-9

17-9 Datasheet

Marker Beacon Blade Antenna – 17-9

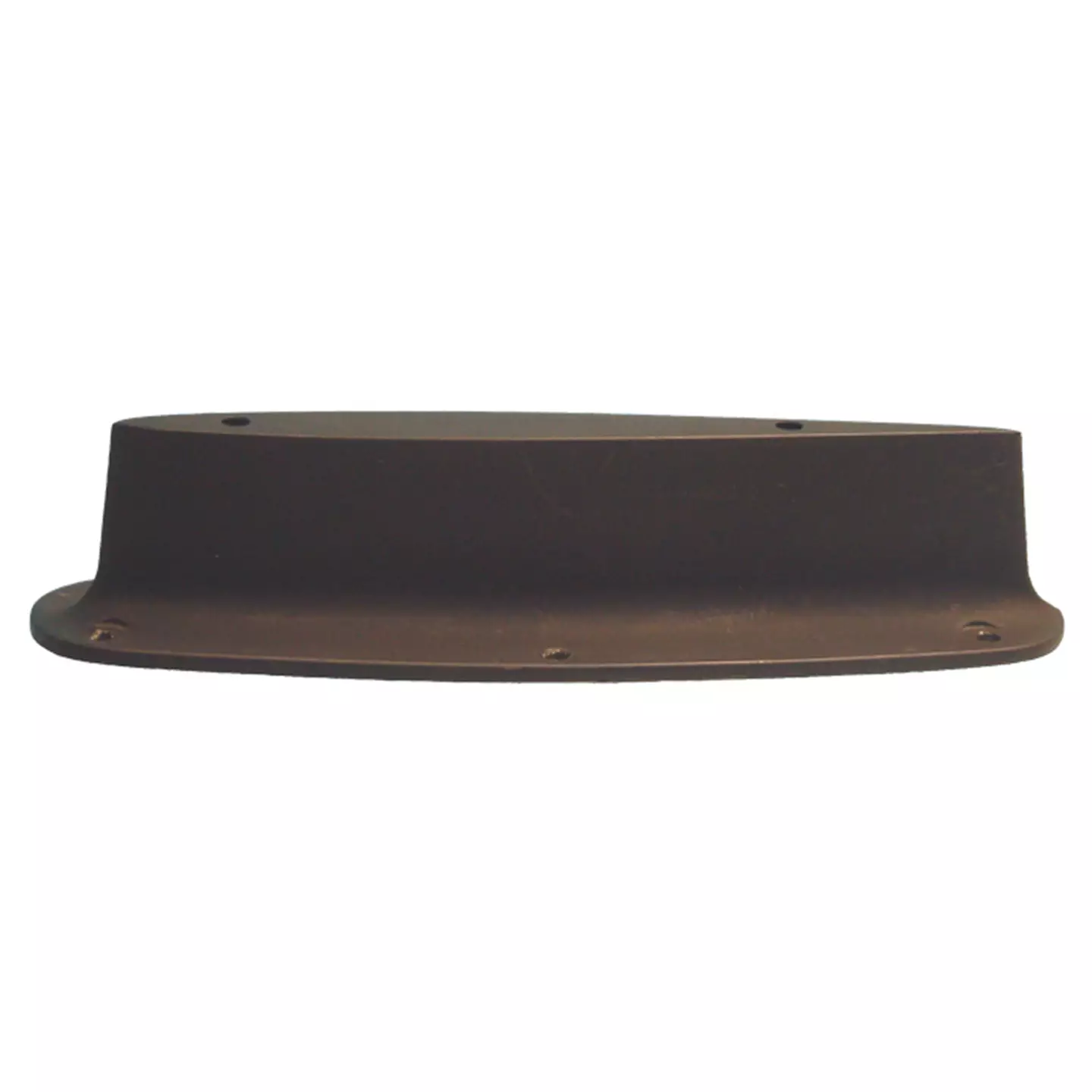

The 17-9 range of antennas is intended for use with airborne ILS marker beacon receivers. The 17-9B and T variants are available with a stainless leading edge strip (17-9B/T RF) for supersonic use. The 17-9 antennas are configured as capacitively tuned loops.

  • ✔Low profile
  • ✔Light
  • ✔High temp +135C version available
Click to enlarge

Specification

74.99 Minimum Frequency
75.01 Maximum Frequency
50 Impedence
3.0:1 max Return Loss VSWR
<16dB below dipole Gain
Horizontal Polarization
Main lobe below aircraft Radiation Pattern Azimuth
230 x 65 x 49 Full Dimensions LxWxH mm
0.25 Mass kg
BNC Connector Type
55000 Altitude ft
54 Continuous Operating Temperature Min - C
70 Continuous Operating Temperature Max C
BS 3G100. Pt. 2. Sect.3.3.1 Vibration
